Product Details

Description

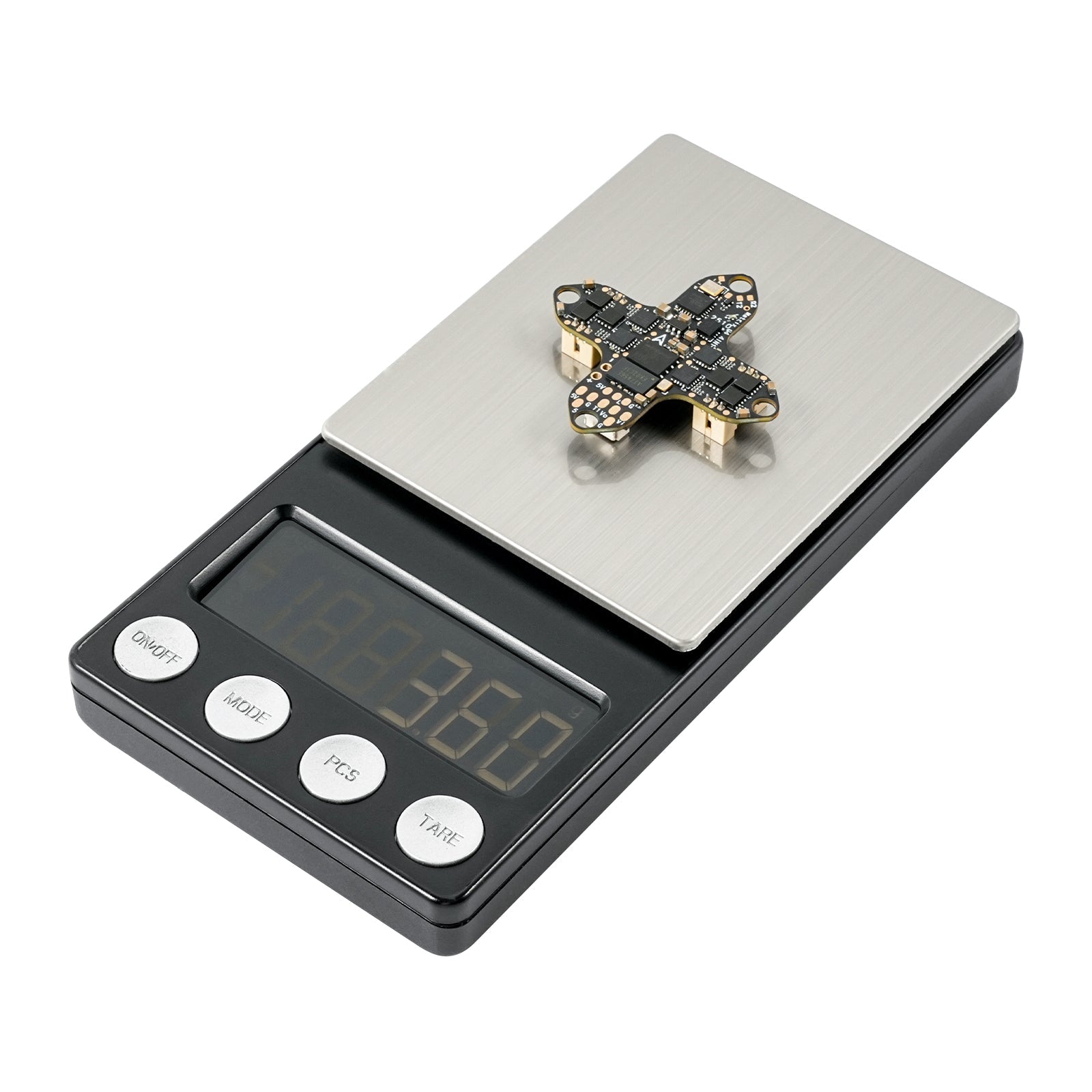

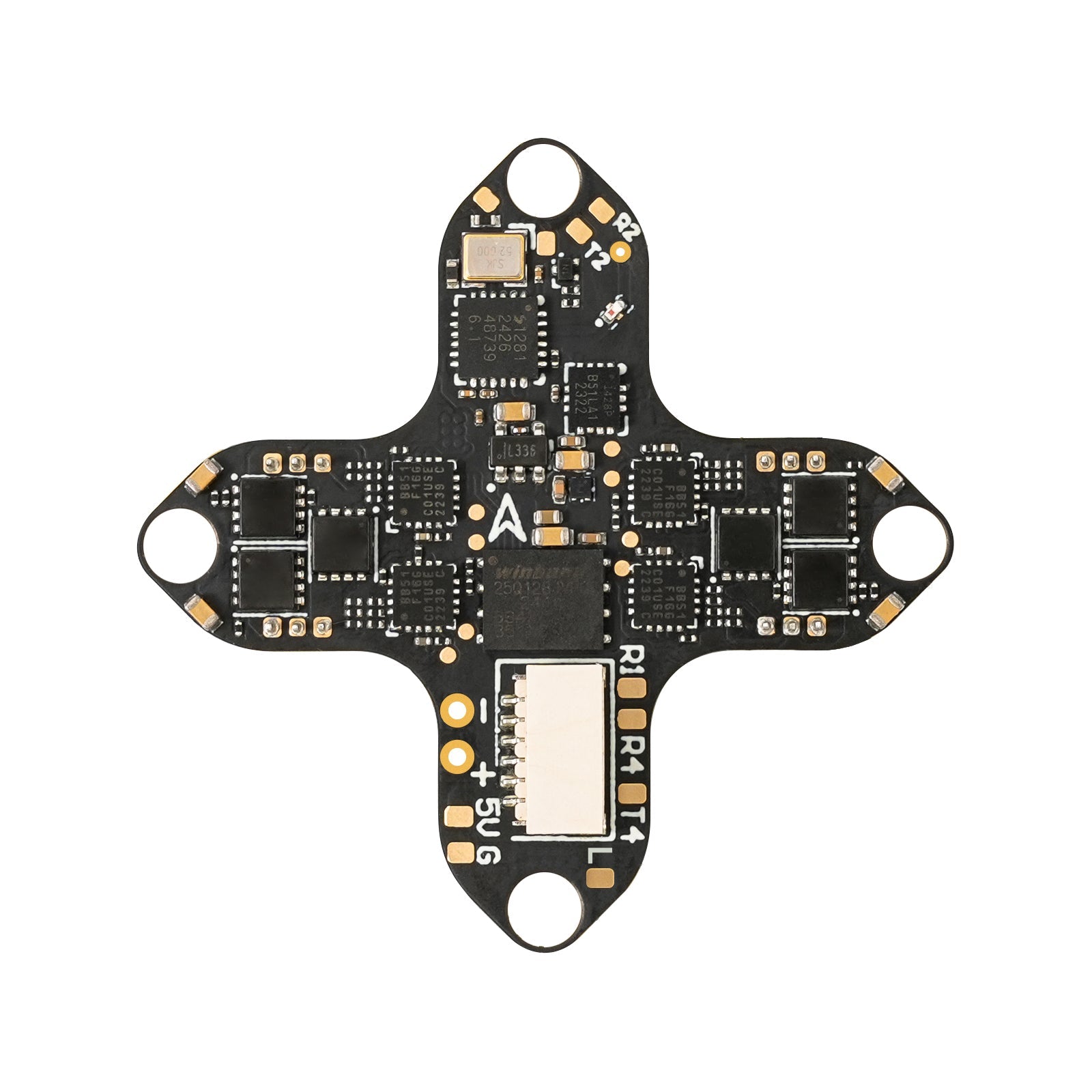

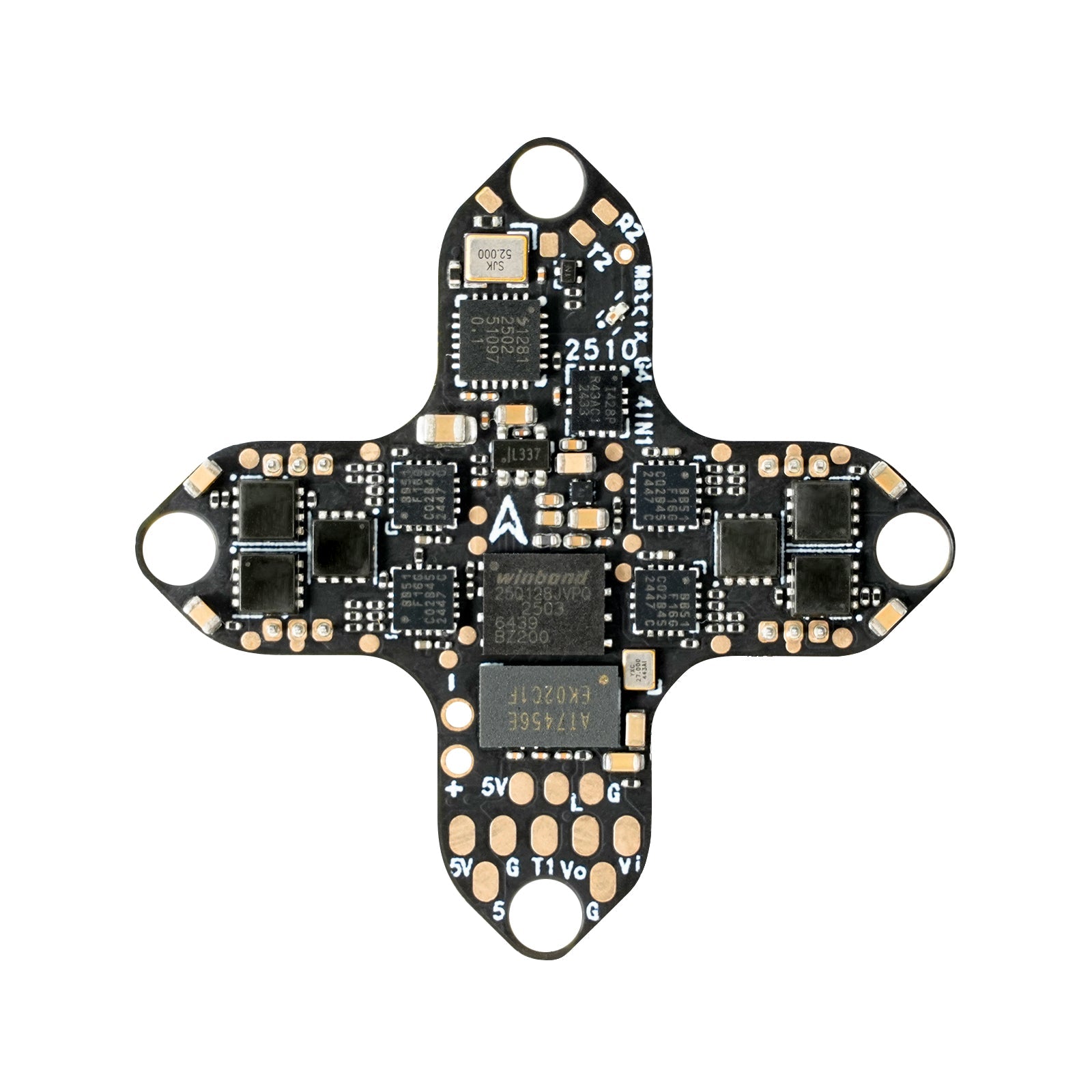

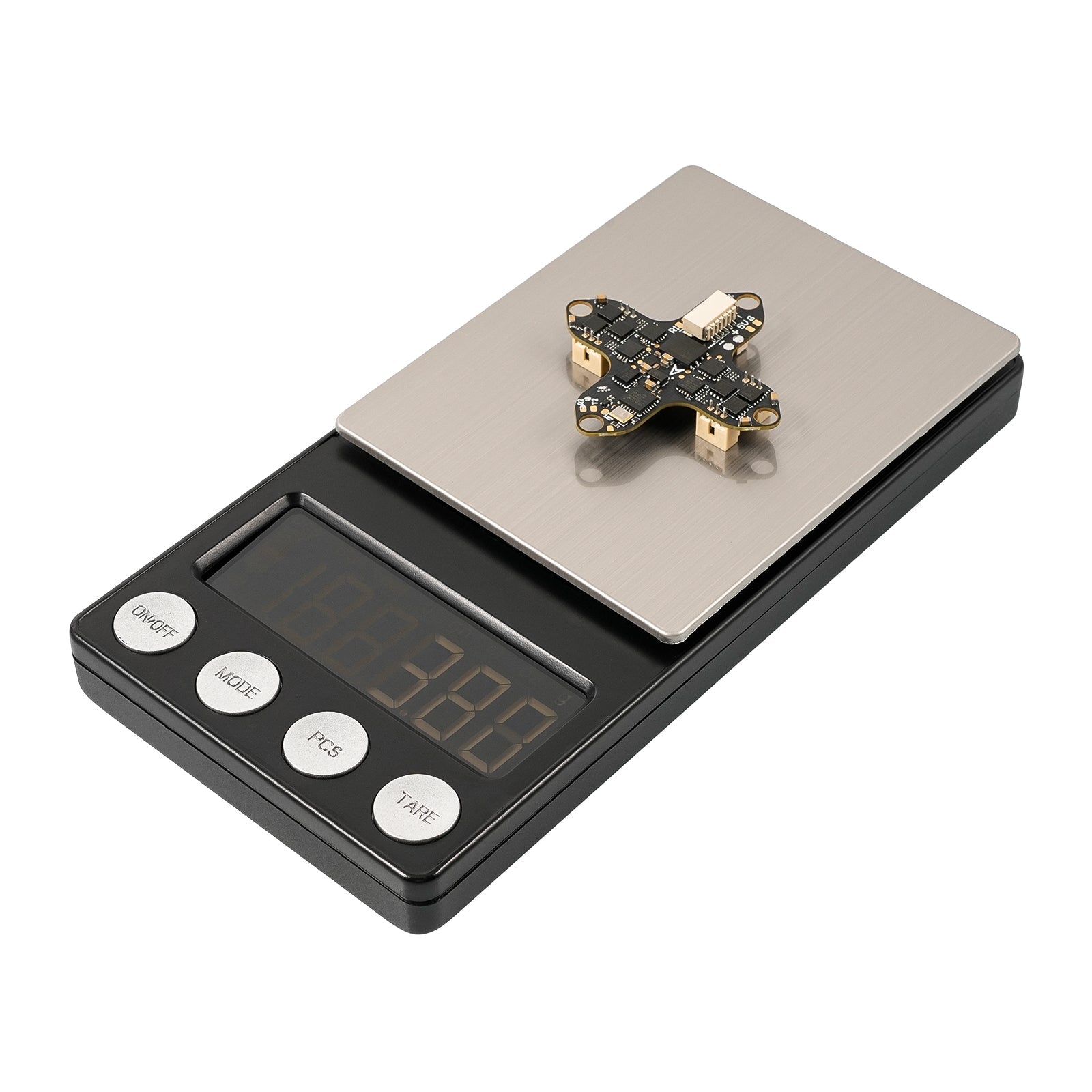

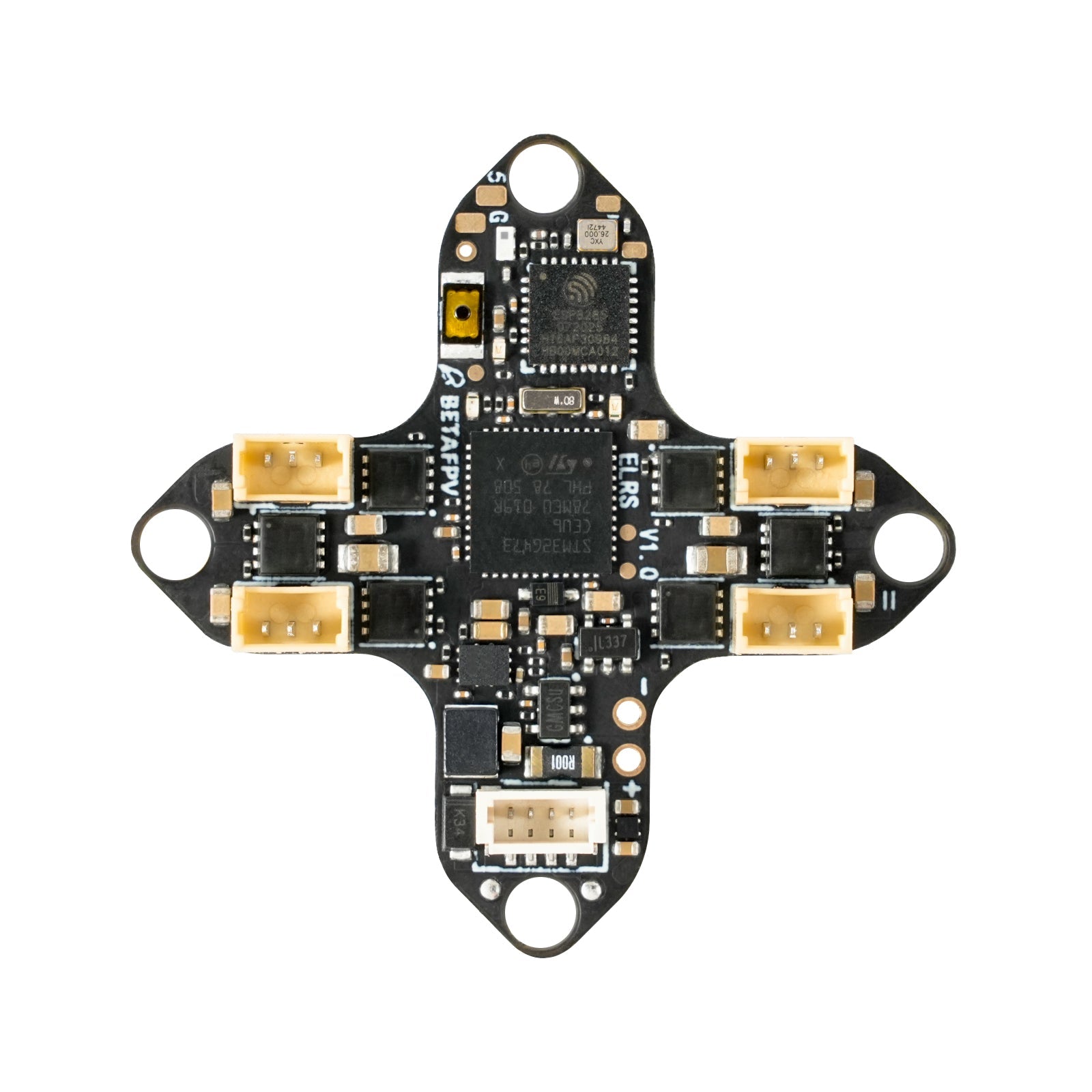

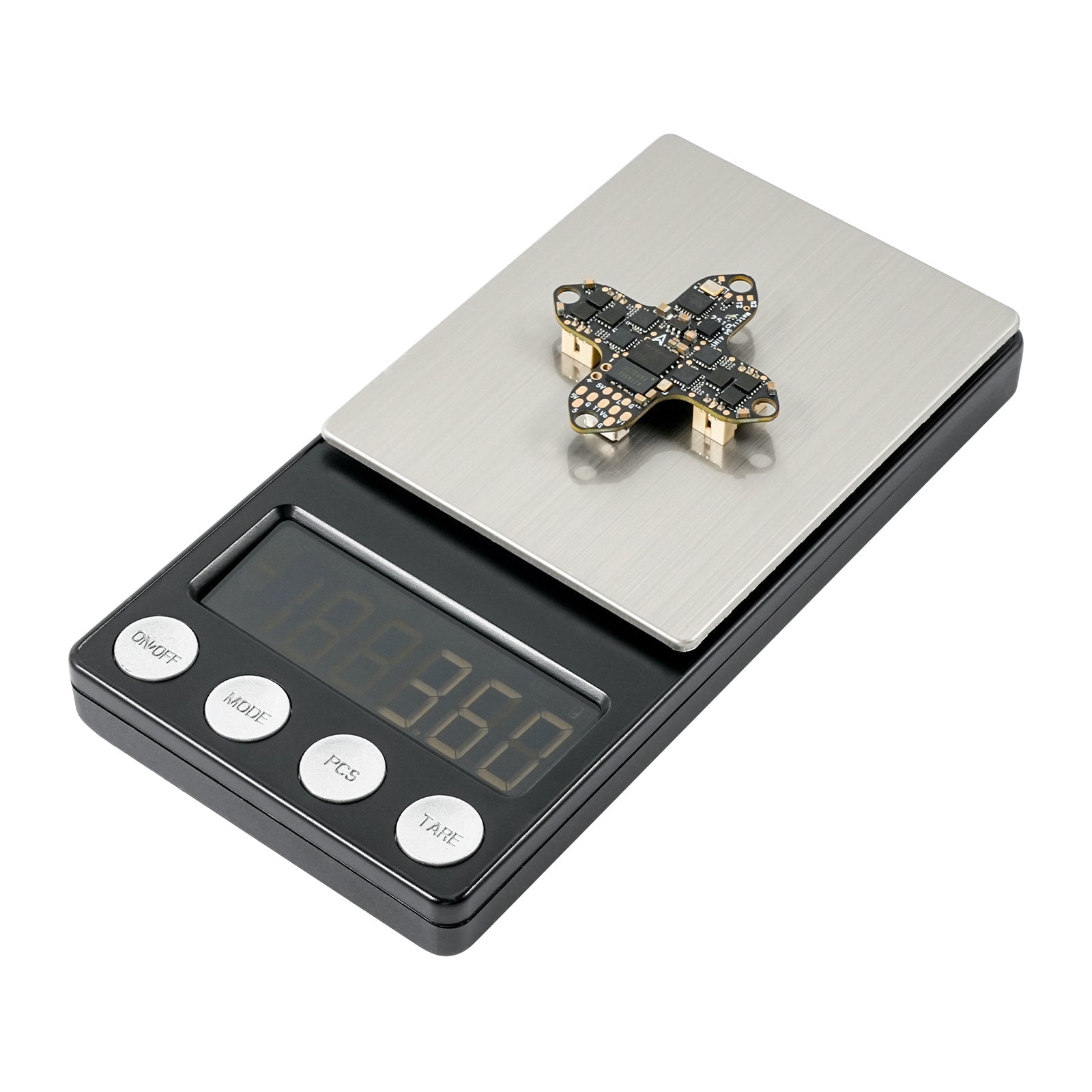

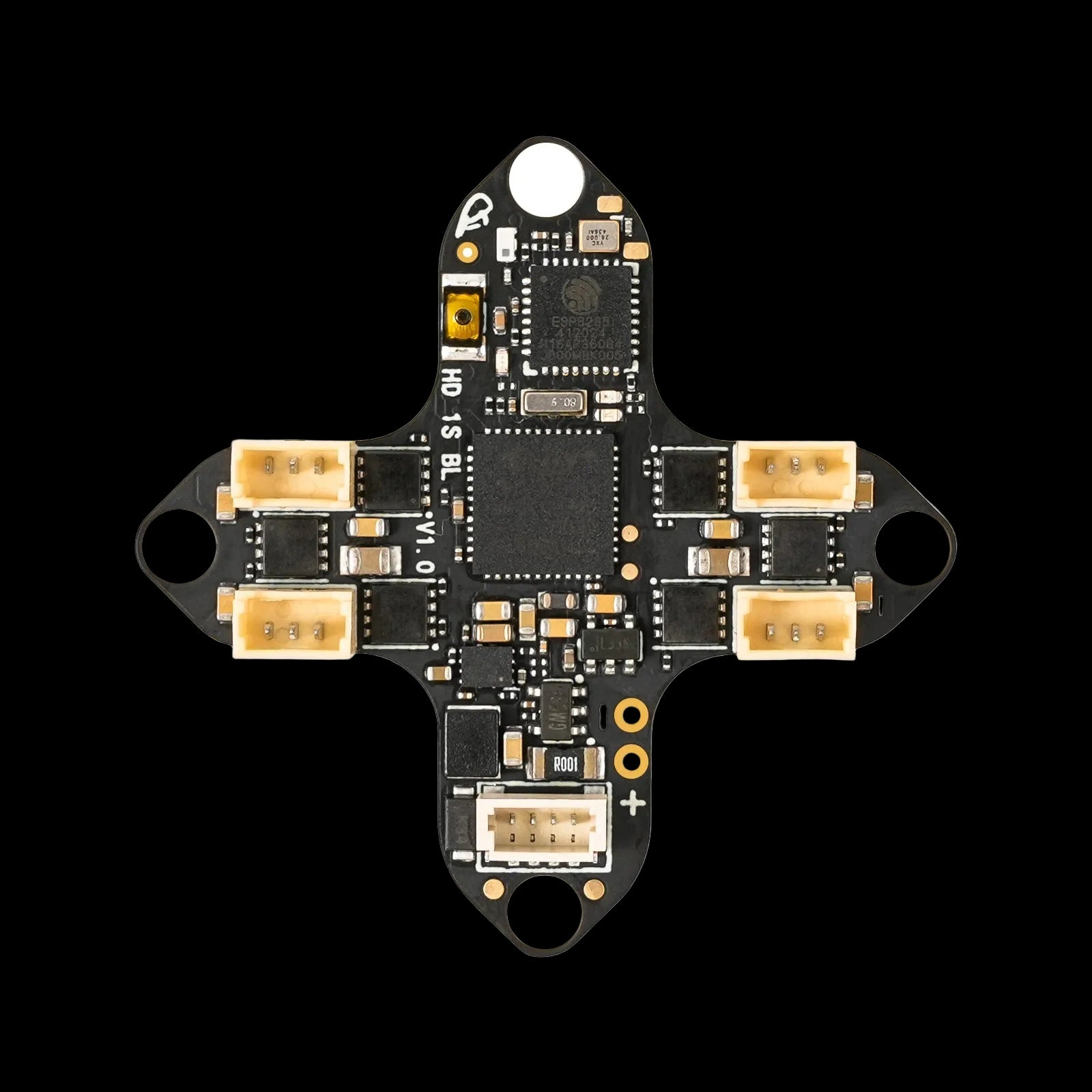

Compact whoop-class flight controller offered in 3IN1 and 4IN1 architectures, engineered for HD digital and analog setups. STM32G473 MCU (168MHz) with selectable ICM42688P or BMI270 gyro options provides high-rate sensing and responsive PID control, while integrated 12A continuous / 18A peak ESCs and a 5V/3A BEC support stable HD video performance. The 3IN1 features motor plugs and an SH1.0-6Pin HD port for solder-free installation; the 4IN1 adds AT7456E OSD and external VTX solder pads for analog flexibility. Mounting is 25.5mm×25.5mm, board thickness 1mm, and assembled weight is approximately 0.0046 kg, making the unit resilient and lightweight for whoop builds.

Material FR-4 PCB, plated pads and solder points
Mounting Size 25.5 mm x 25.5 mm
Board Thickness 1.0 mm
MCU STM32G473CEU6, 168 MHz
Gyroscope Options ICM42688P (8 kHz) or BMI270 (3.2 kHz)
ESC Current Rating 12 A continuous, 18 A peak
BEC 5 V / 3 A, advanced low-voltage performance to support HD systems
Receiver Onboard Serial ExpressLRS 2.4 GHz (CRSF)
Connectors & Interfaces JST1.25 motor plugs, BT2.0 battery connector, SH1.0-4Pin USB, SH1.0-6Pin HD port (3IN1), OSD (AT7456E, 4IN1)
