BlackBird V4 2307 5-inch FPV Brushless Motor Sbang Technology

Q: What payment methods do you accept?

We accept multiple secure payment methods, including Visa , MasterCard , Apple Pay , and Google Pay . All payments are processed through encrypted gateways that comply with UAE Central Bank and international security standards. Customers can also check out quickly using one-click payment options available at checkout.

Q: How long does delivery take?

For UAE-based customers, orders are typically processed within 1–3 business days , followed by an estimated 2–7 business days for delivery , depending on the destination and courier workload. International delivery times vary depending on destination and customs clearance. Tracking details are provided once the order is dispatched.

KV: 1960KV

1960KV
2060KV

Product variants

Pairs well with

BlackBird V4 2307 5-inch FPV Brushless Motor Sbang Technology

1960KV

Đ 102.99

Product Details

Description

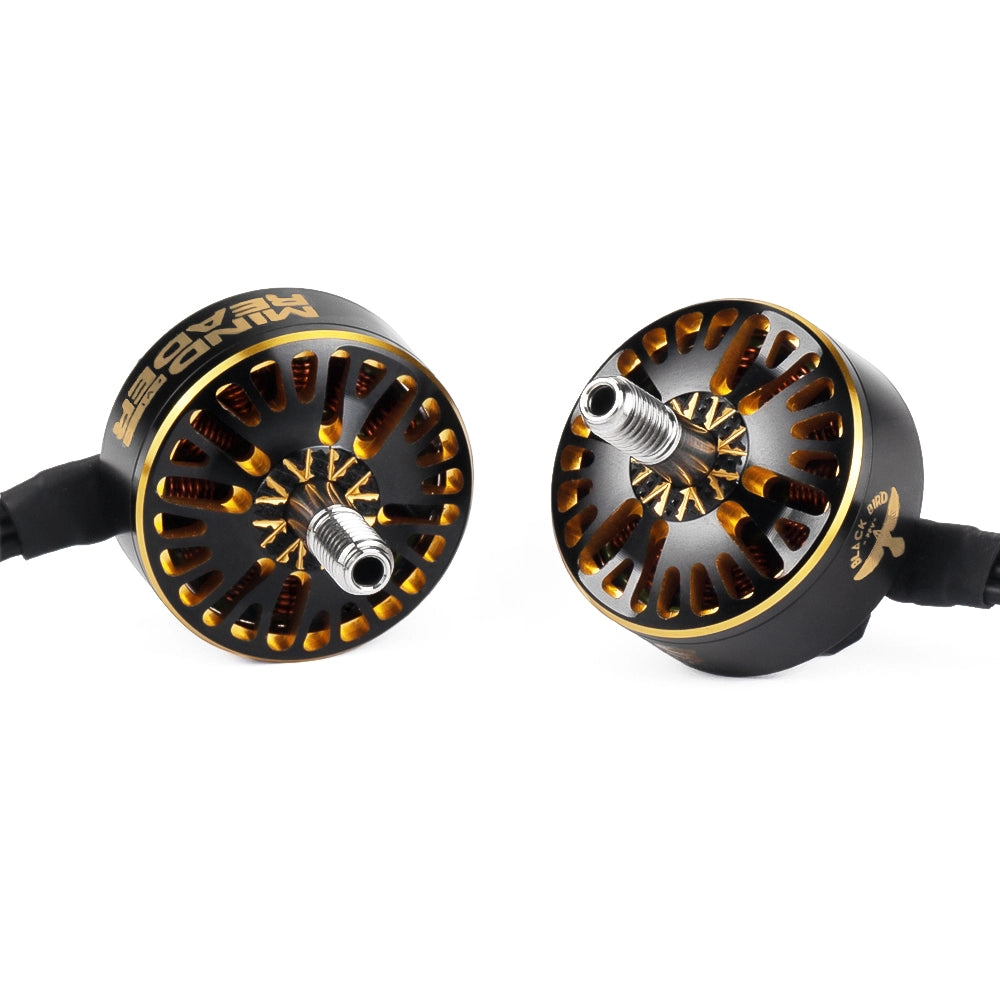

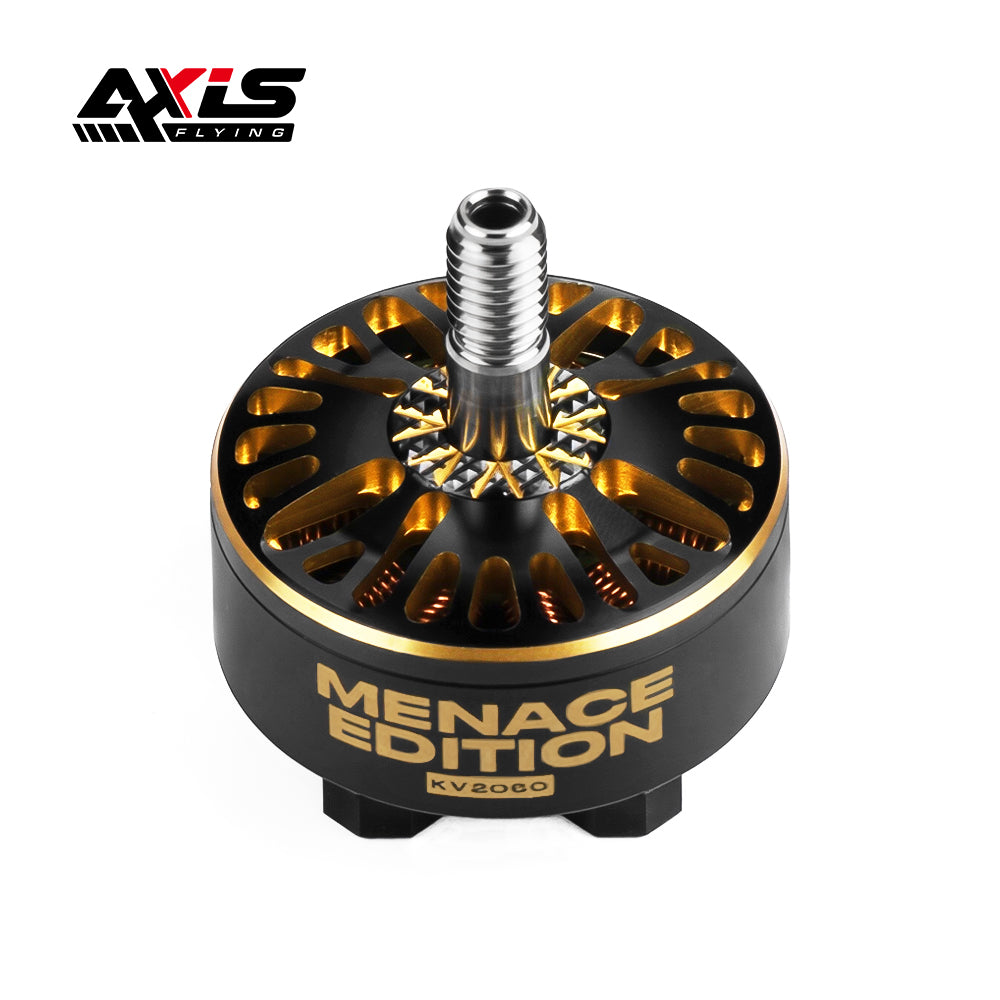

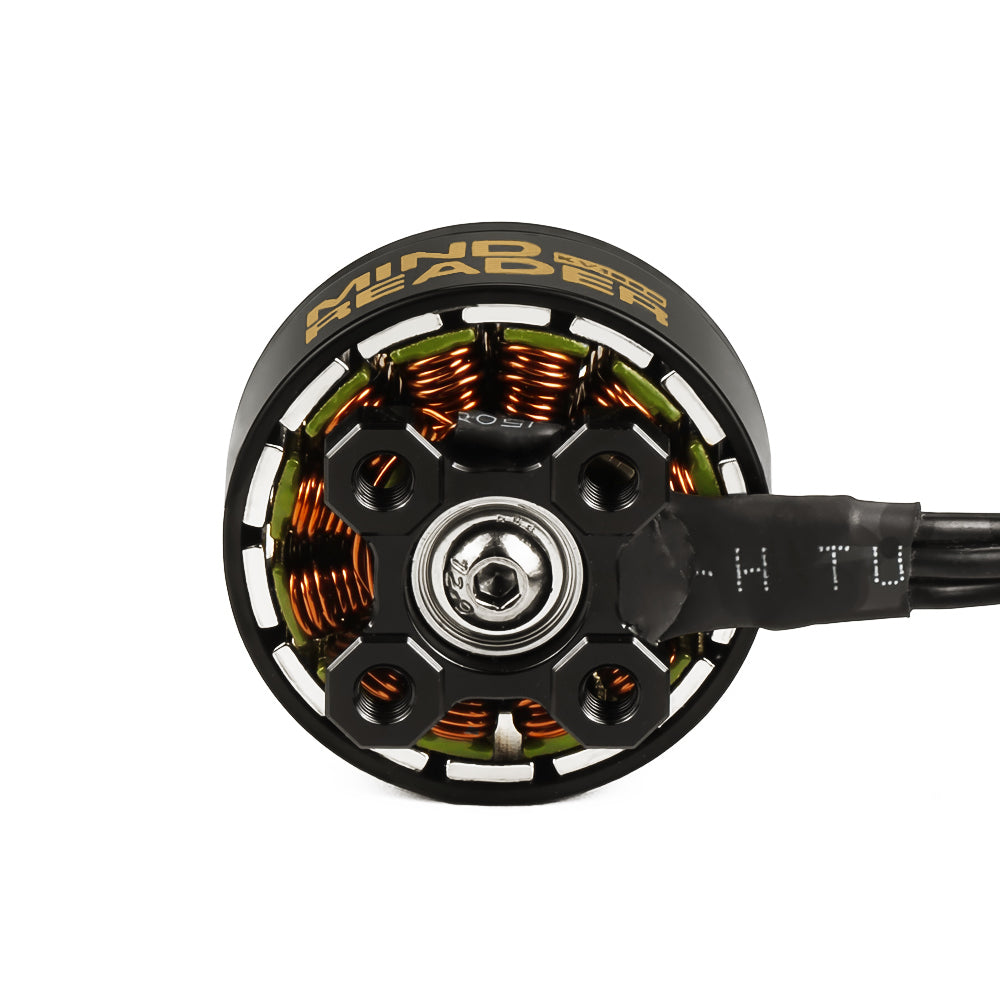

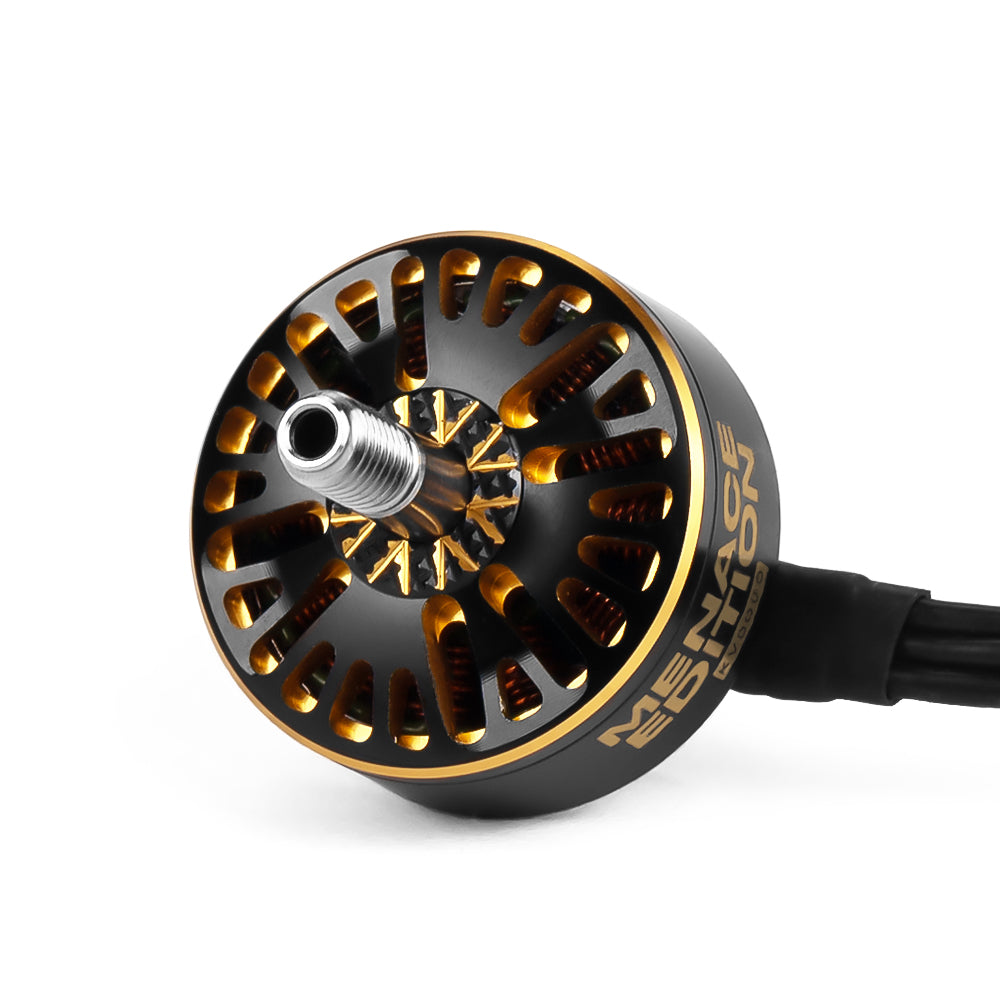

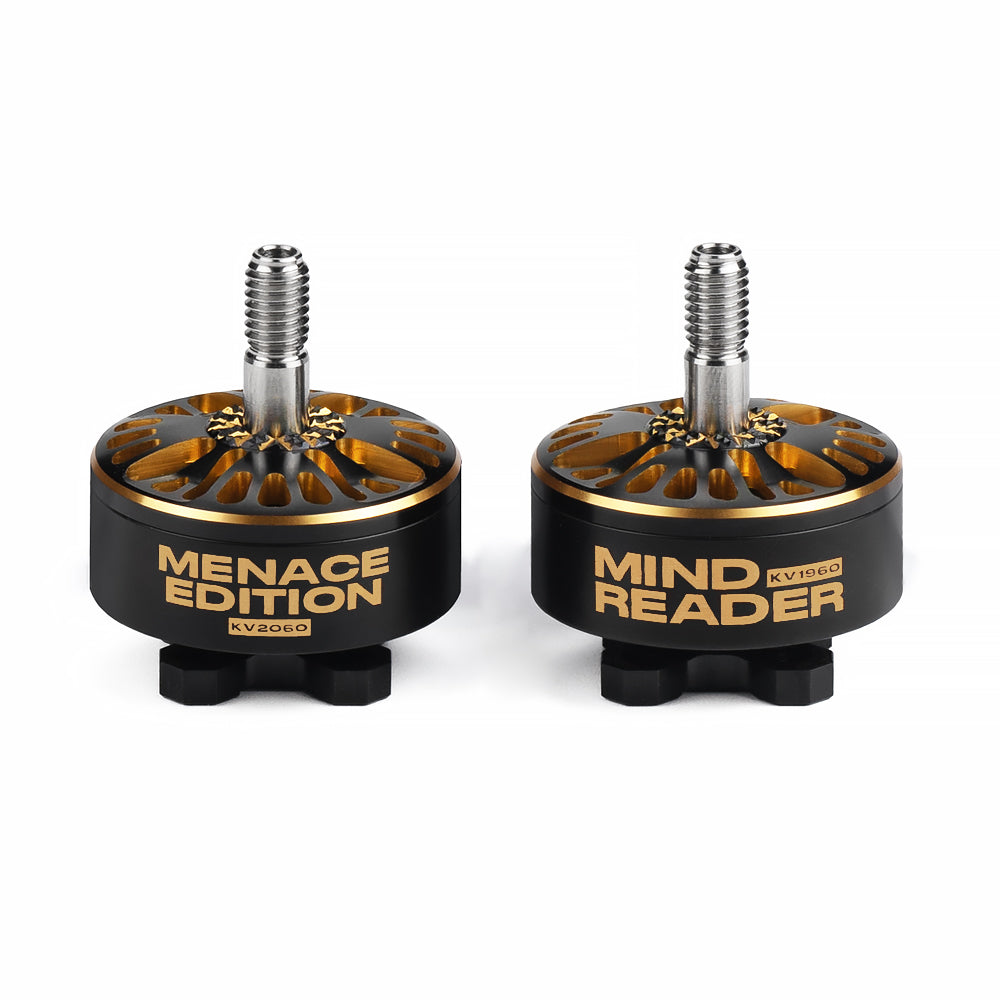

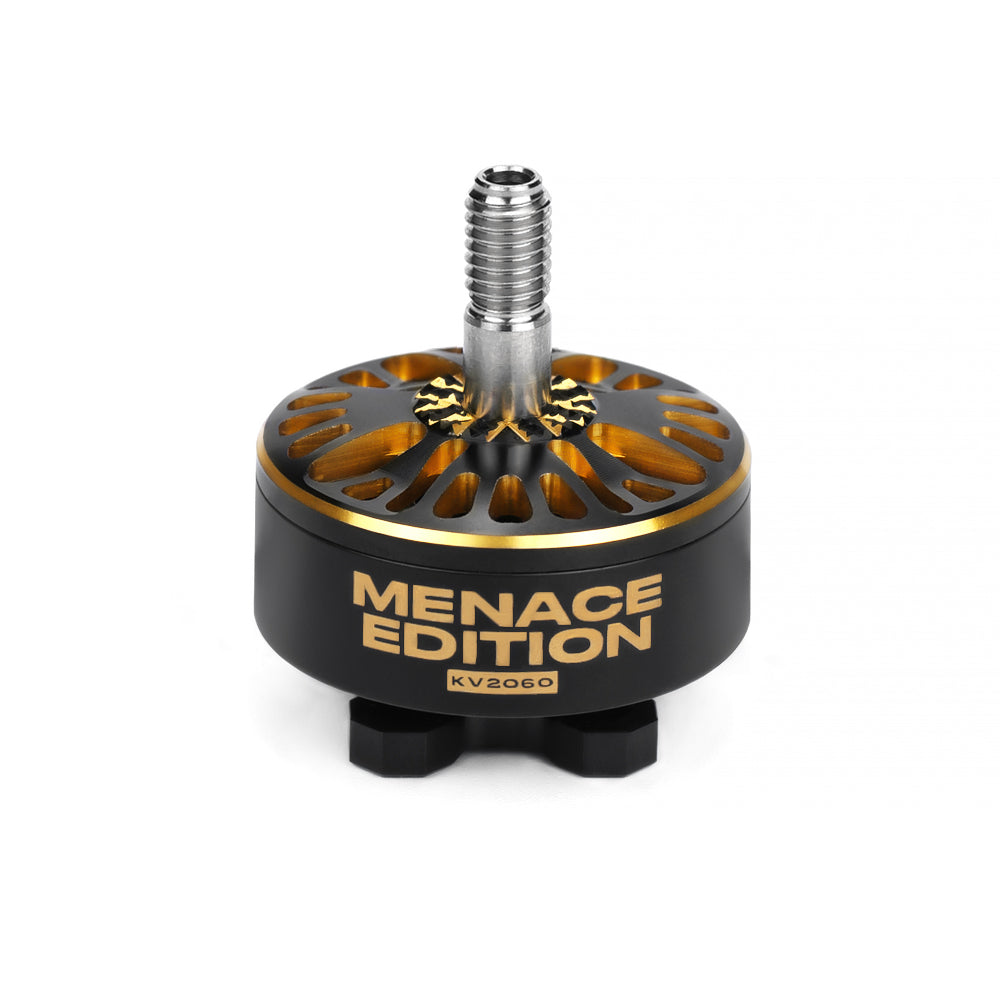

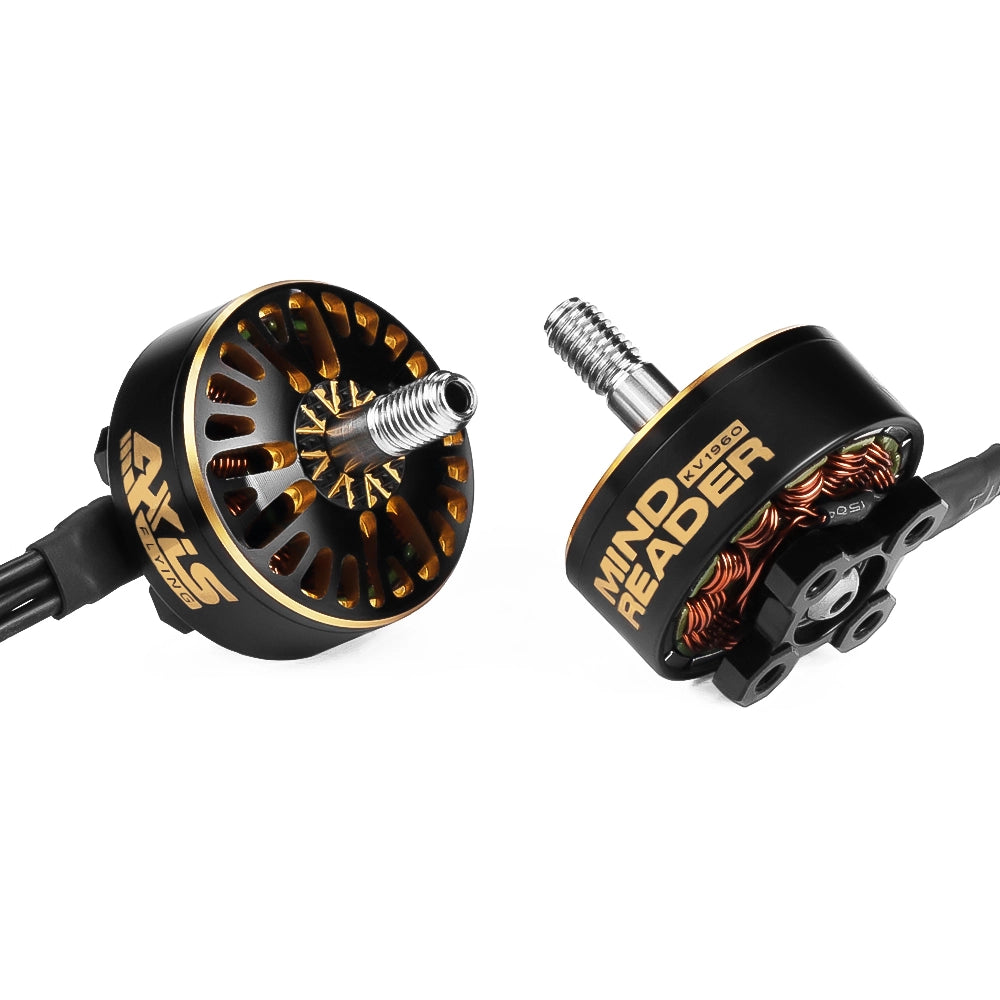

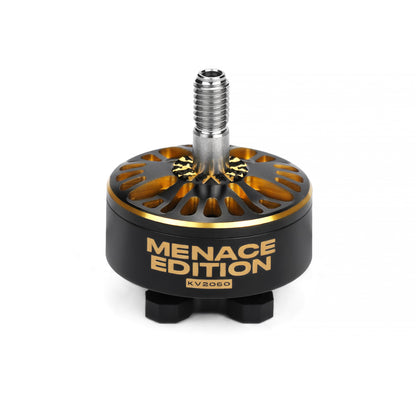

Performance-oriented 2307.3-stator motor engineered for 5-inch FPV freestyle frames with a 12N14P winding delivering consistent torque and controllable throttle response. Available in 1960KV and 2060KV for 6S setups, featuring IP53 bearing-shield protection and AWG20 150 mm power leads; measures Ø27.8 × 32.9 mm with an M5 shaft and 34.74 g mass including cables. Measured peak thrust exceeds 1.9 kg on 5-inch propellers with typical loaded current near 50 A, suitable for aggressive freestyle and high-thrust flight profiles.

Configuration	12N14P winding
Magnet	N52H arc magnet
Bearing protection	IP53 bearing shield technology (dust and water resistant)
Stator size	2307.3
Outer dimensions	Diameter 27.8 mm × Length 32.9 mm
Power leads	AWG 20, 150 mm
Weight	34.74 g (including 150 mm cables)
Shaft & mounting	M5 shaft; mounting screws M3×8 (supplied); lock screw M3×4
KV options	1960KV and 2060KV for 6S configurations
Package contents	1× BBV4 motor; 4× M3×8 motor screws; 1× M3×4 shaft lock screw; 1× M5 flanged nylon insert lock; 1× O‑ring; 2× washers
