Product Details
| Material | Multi-layer FR-4 PCB with solder mask and plated through-holes |
| Processor | STM32H750 H7-class MCU, 480 MHz, 1 MB RAM |

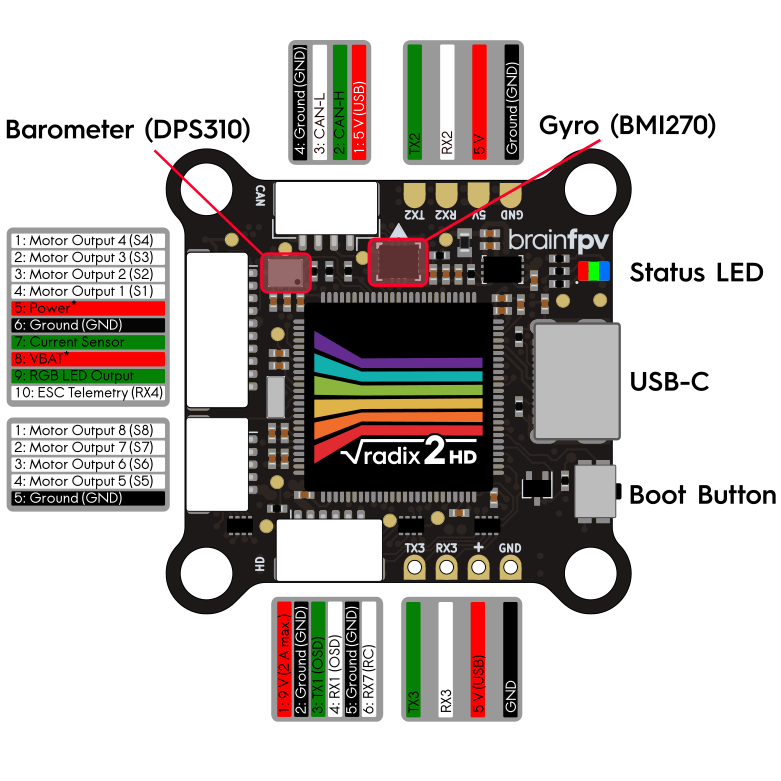

| IMU | Bosch BMI270 gyro/accelerometer |
| Barometer | Infineon DPS310 barometric sensor |
| Dimensions | 37 x 37 x 0.8 mm; 30.5 mm hole spacing |
| Weight | 7 g (0.007 kg) |

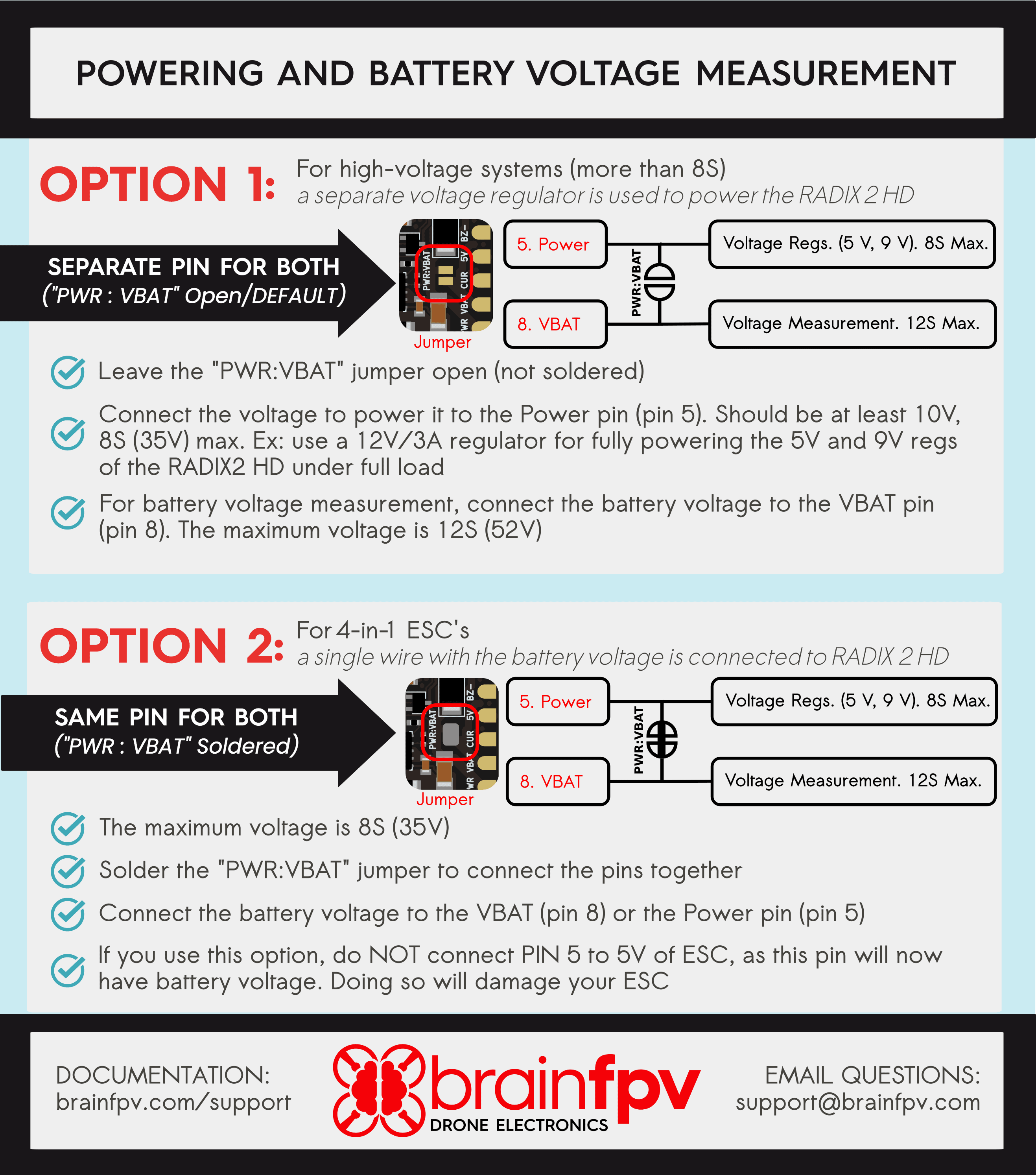

| Power & Voltage | Supports direct 8S input (up to 35 V); 12S voltage sensing when powered at lower voltage |
| Regulators & Protection | On-board 5 V / 1.5 A regulator; 9 V / 2.0 A regulator with pit switch for HD system; TVS spike protection |

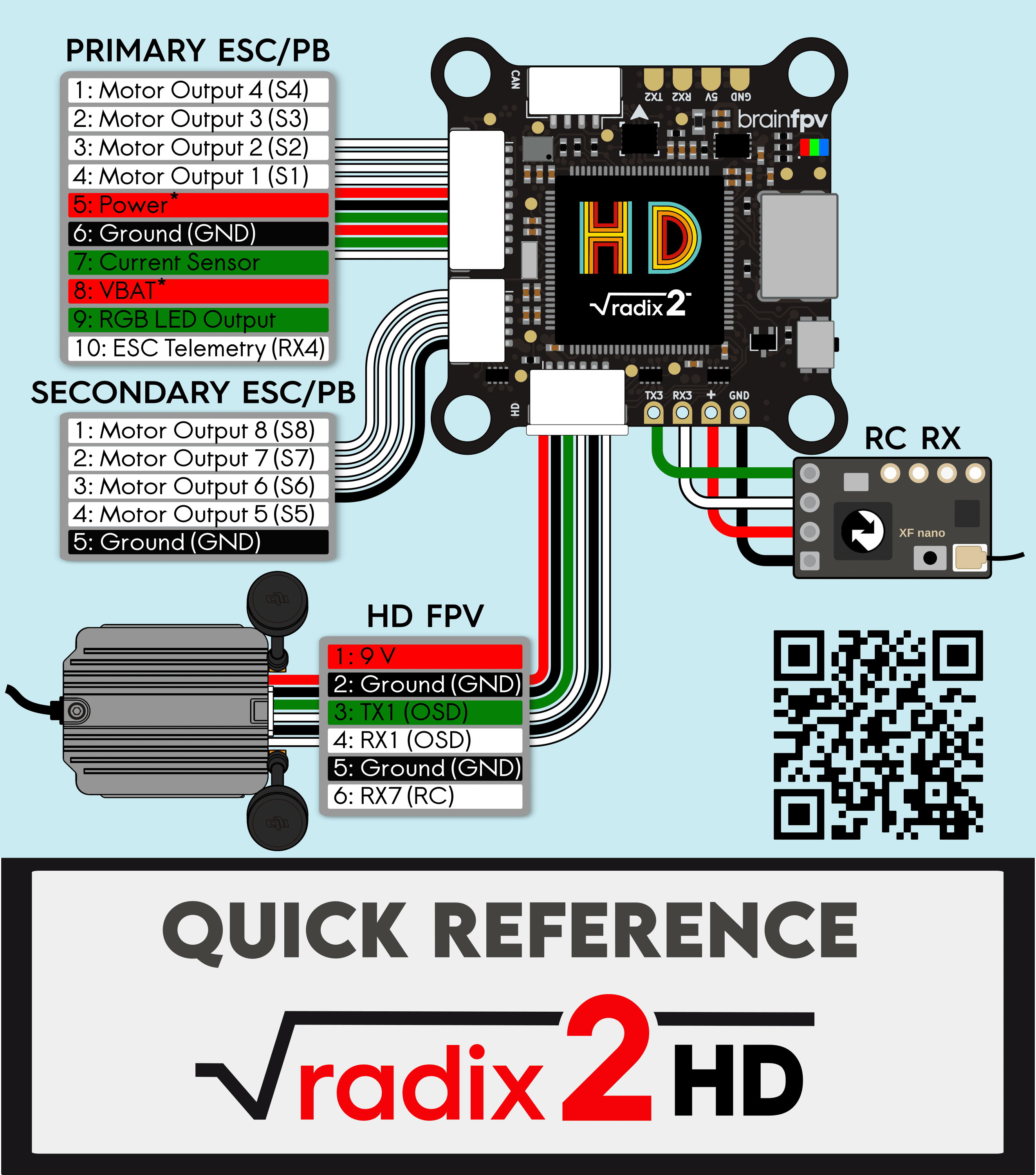

| I/O & Connectivity | Eight motor outputs (bi-directional DSHOT), two configurable servo outputs, 6+ UARTs (one RX-only), I2C, CAN bus, USB-C, analog current and RSSI inputs, RGB LED and buzzer |

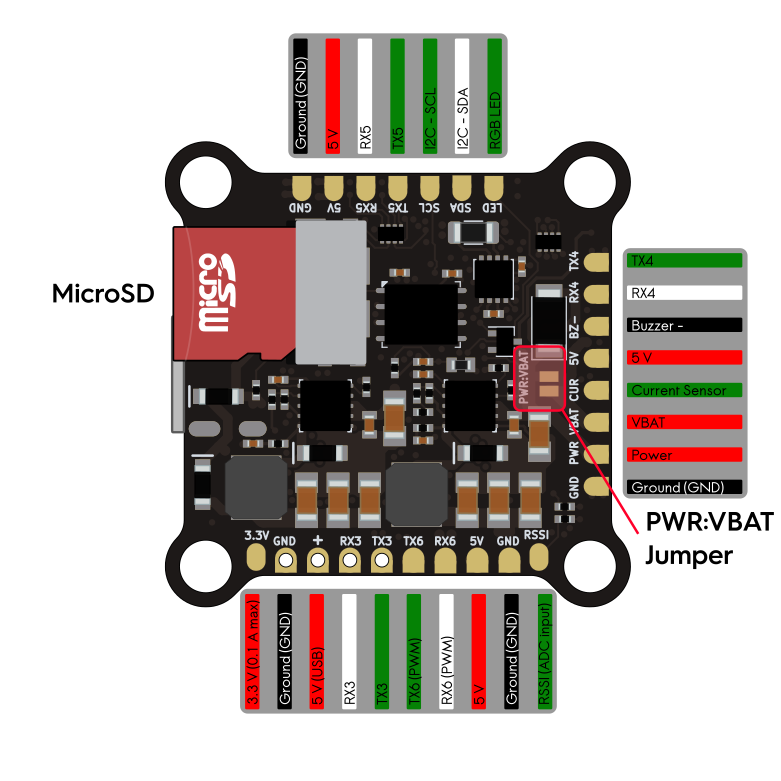

| Memory & Storage | 16 MB built-in flash plus microSD slot for flight logs and firmware |
