Product Details

Description

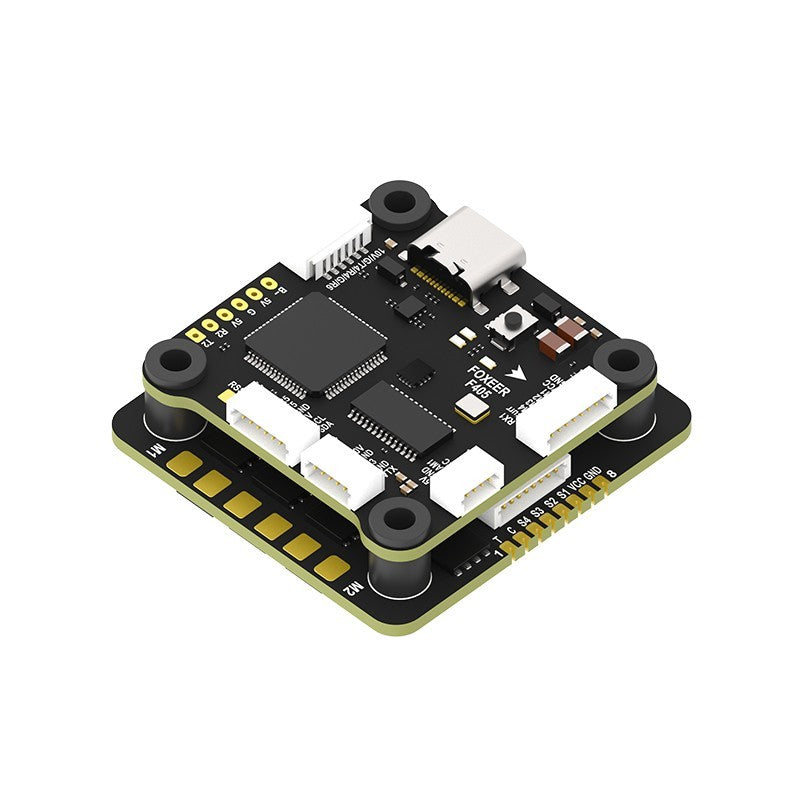

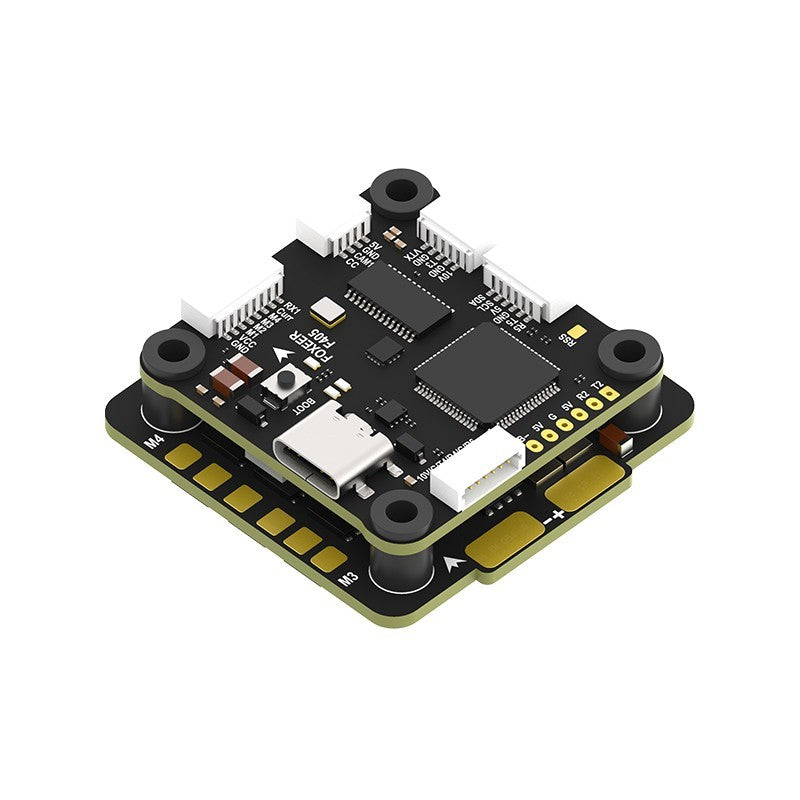

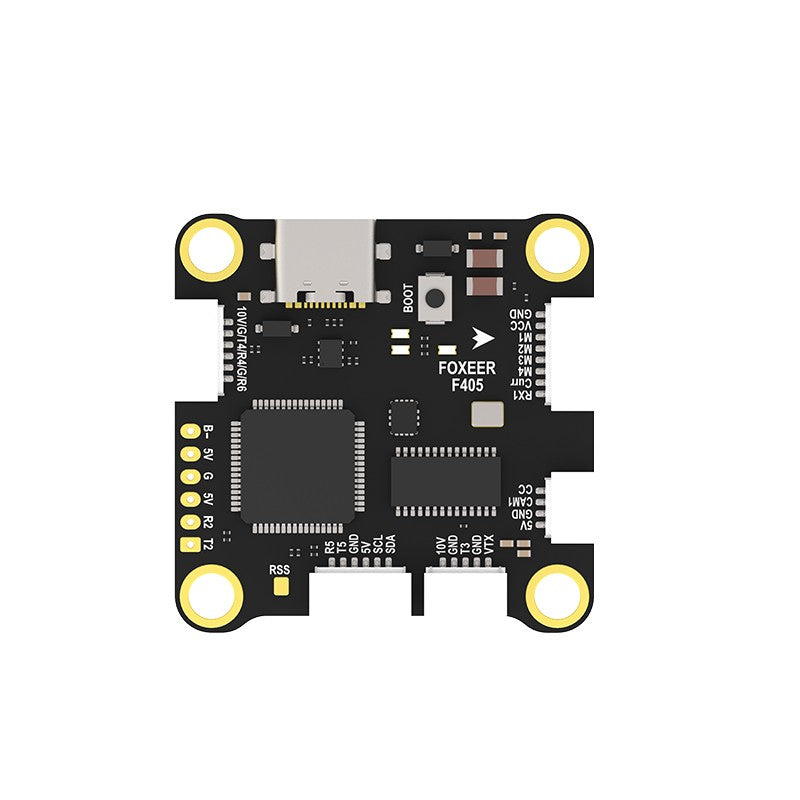

Combined flight controller and 4-in-1 ESC stack integrates an STM32F405RGT6 MCU with ICM42688-P IMU and DPS310 barometer for precise attitude sensing and altitude hold. The Reaper 55A 4-in-1 ESC runs BLHeli32, supports 3–8S LiPo (9–36V), and provides 55A continuous per motor with 80A burst plus telemetry. Board-level features include BF OSD, 16MB blackbox flash, Type-C USB, multiple UARTs, DJI/GPS/VTX connectors and dual BEC outputs (5V/3A and 10V/3A) for flexible power distribution.

Controller CPU STM32F405RGT6 (32-bit MCU)
IMU (Gyro) ICM42688-P
Barometer DPS310
Power Input Flight controller 4–8S LiPo; ESC 3–8S (9–36V)
BEC Outputs DC 5V/3A and 10V/3A

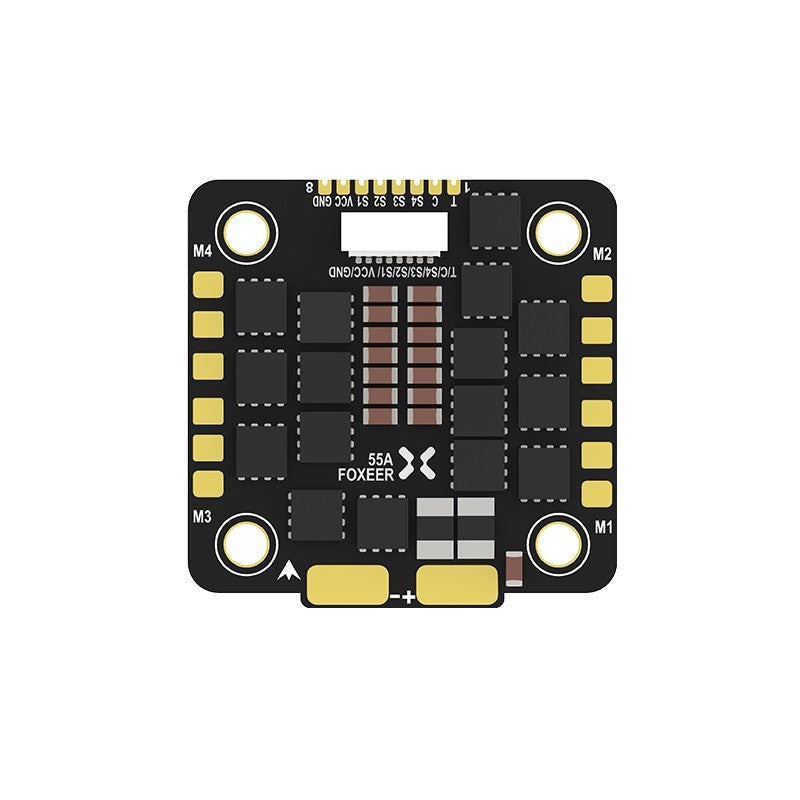

ESC Performance Reaper 4-in-1 BLHeli32 — 55A continuous per motor, 80A burst
Connectivity & I/O 6 UARTs, DJI connector, GPS/Compass, 2x camera switch, VTX, SmartAudio, RX1 ESC telemetry
Dimensions & Mounting FC 37×37mm (mount 30.5×30.5mm, Ø4mm); ESC 42.5×42×5.5mm (mount 30.5×30.5mm)
Storage & Misc Blackbox 16MB flash; 1x 2812 LED set; Type-C USB; buzzer included
