Product Details

Description

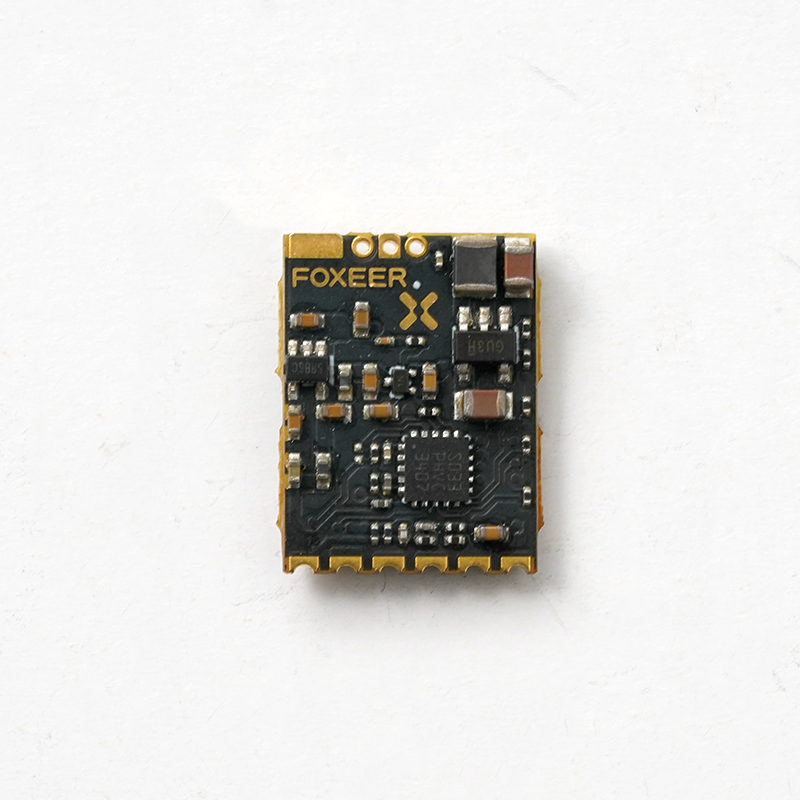

Compact 5.8 GHz video transmitter engineered for micro and toothpick multirotors, providing a small-footprint 12×16 mm PCB and minimal mass to preserve flight performance. Selectable power outputs (25/100/200/350 mW) and 72 channels enable flexible range and channel planning; Tramp protocol support permits OSD/controller frequency control when a tramp cable is connected. Measured consumption is 340 mA at 350 mW output, and PIT mode plus a hardware KEY permit low-power operation and frequency/power locking. The module is optimized for low interference and stable frequency under load.

Input Voltage 5 V
Output Voltage 5 V
Frequency 5.8 GHz (72 channels)
Power Levels 25 mW / 100 mW / 200 mW / 350 mW
Channels 72 CH
Size (footprint) 12 × 16 mm
Weight 0.8 g (0.0008 kg)
Current Consumption 340 mA @ 350 mW
Control & Modes Tramp protocol compatible; PIT mode; hardware KEY to lock/unlock frequencies
