Product Details

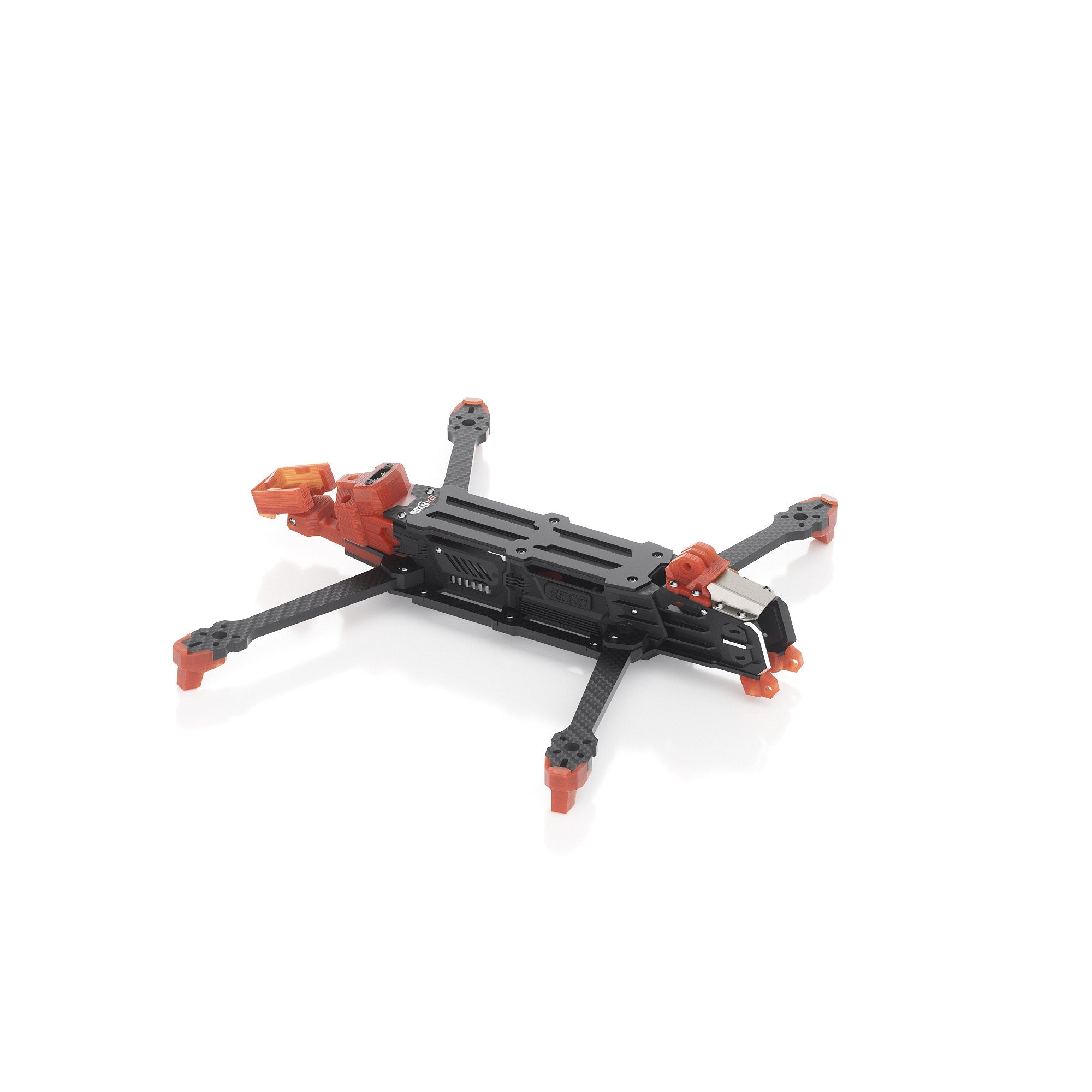

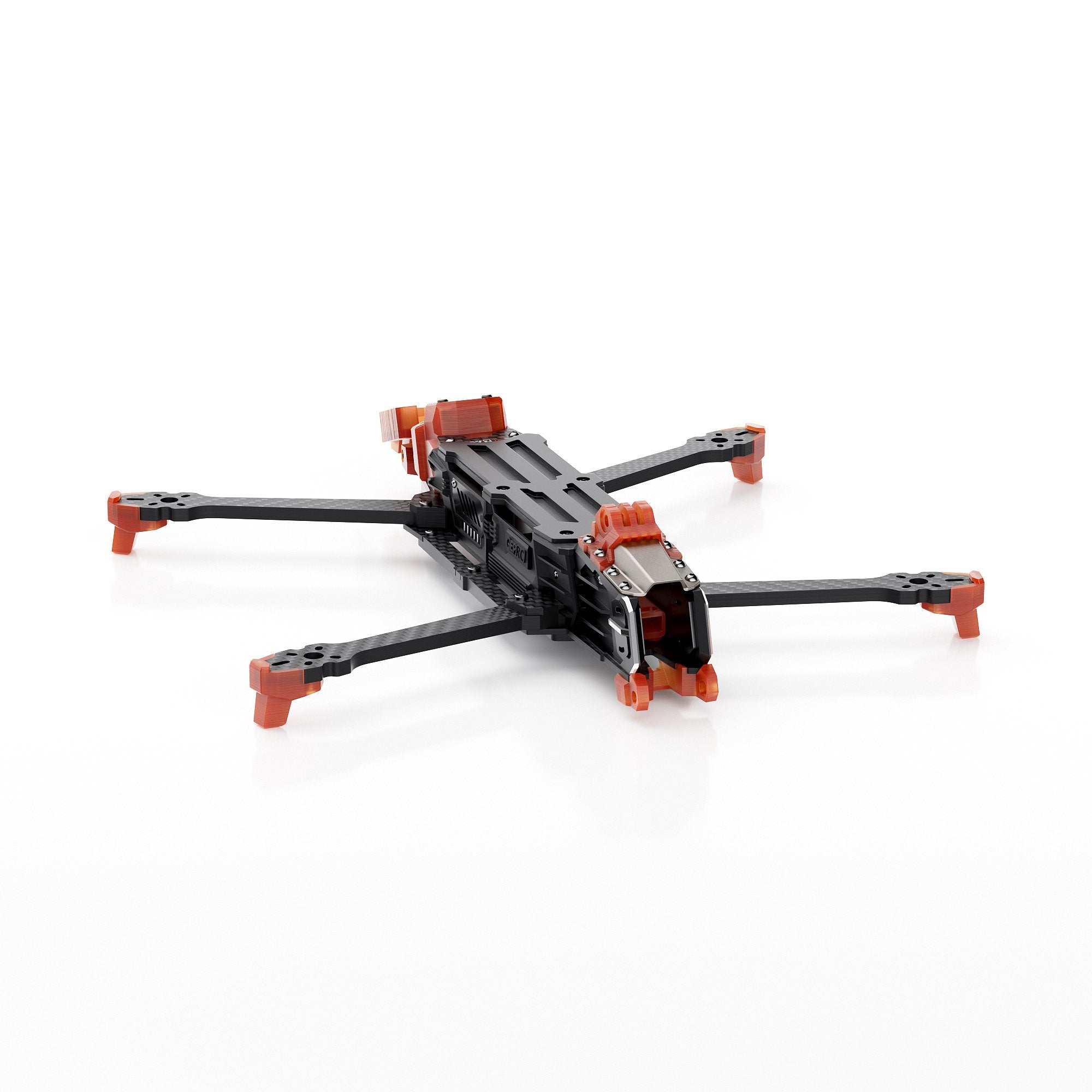

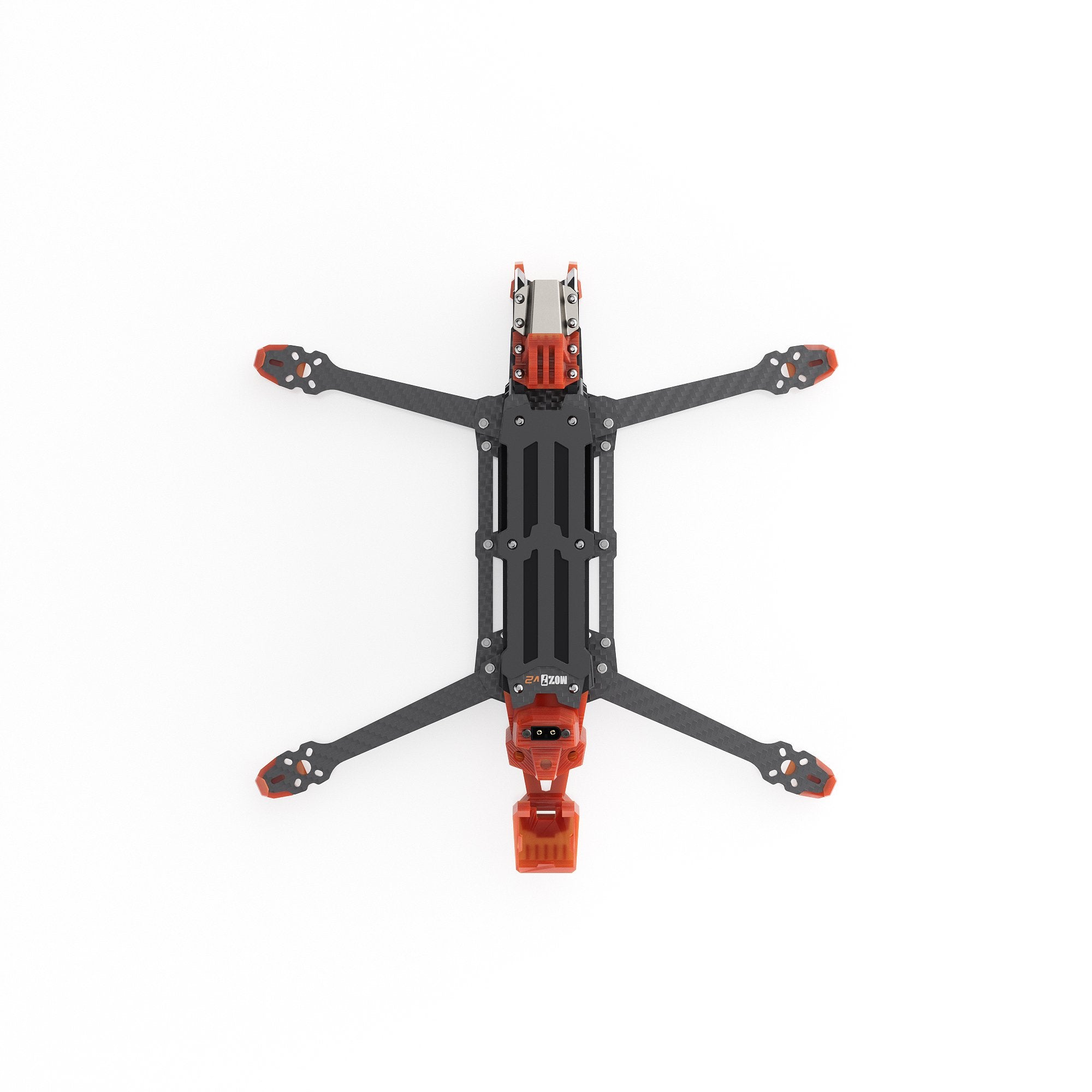

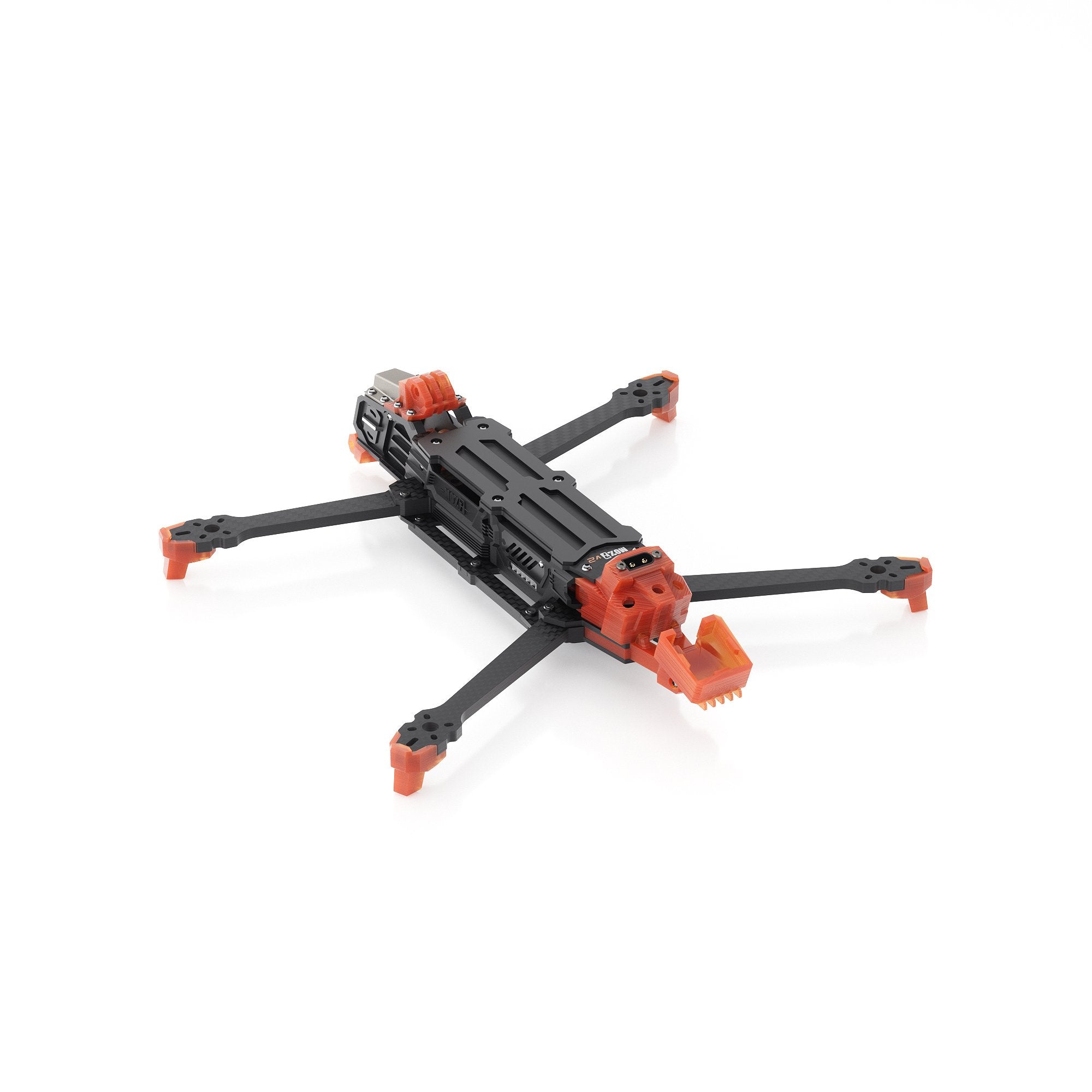

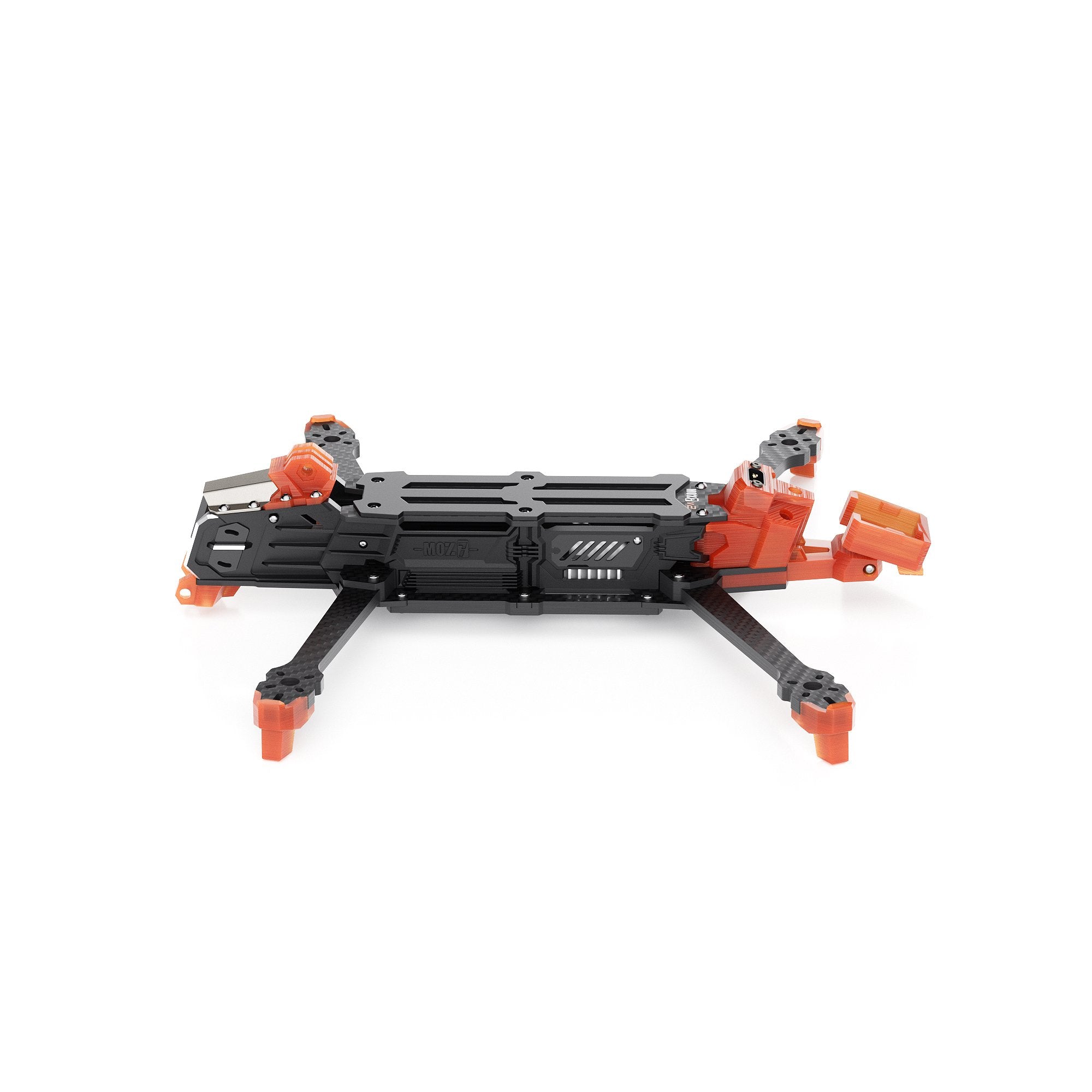

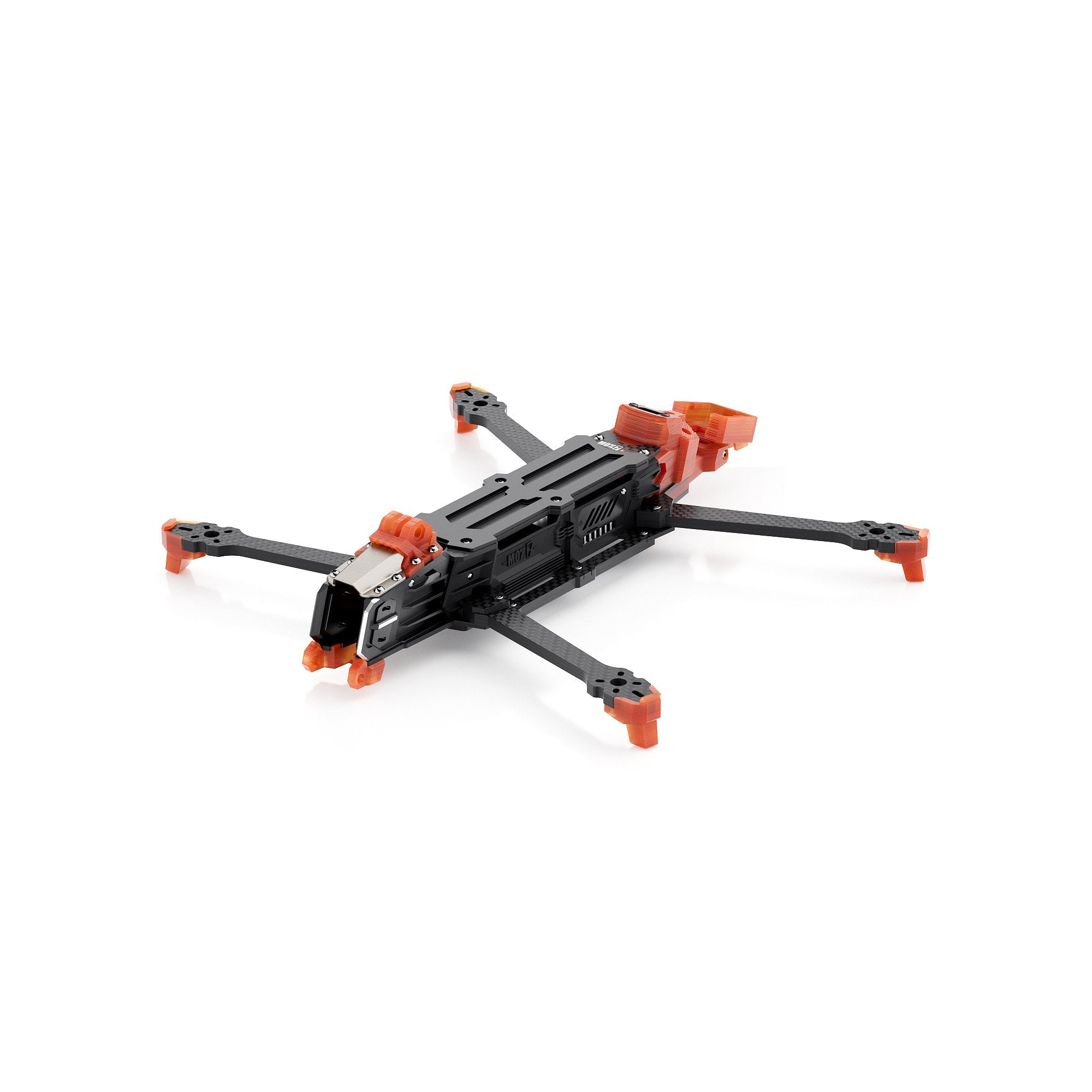

Precision carbon-fiber main plates with aerospace-grade aluminum camera mounts and a metal top plate deliver structural rigidity and lens protection while minimising mass. Designed for 7.5-inch props with support for 8-inch configurations and an extended front to keep props out of O4 Air Unit Pro camera view. Reinforced 6mm arms, 2.5mm top and bottom plates, and vertical bracing enable stable long-range setups and bottom-mounted battery layouts. Includes GPS and action-camera mounts, dual antenna mounts, landing gear and a complete hardware pack for assembly.
| Materials | 2.5mm carbon-fiber main plates; 2.5mm metal top plate for lens protection; aerospace-grade aluminum camera mounts; 6mm carbon-fiber arms; 3mm clamp plate |
| Overall dimensions | 376 × 303 × 35.5 mm |
| Wheelbase | 336 mm |
| Weight | 0.27 kg ± 0.005 kg |
| Mounting holes | FC: 30.5×30.5 mm (M3), 25.5×25.5 mm (M2), 20×20 mm (M3); VTX: 25.5×25.5 mm (M2), 20×20 mm (M2); Motor: 16×16 / 19×19 mm (M3); Lens mount: 20 mm (M2) |
| Propeller compatibility | Designed for 7.5-inch props, supports up to 8-inch propellers |
| VTX & GPS compatibility | Compatible with O4 Air Unit Pro HD VTX; VTX mount clears larger heat sinks; adjustable GPS mount for M1025-series units |
| Top, bottom & arm thickness | Top plate 2.5 mm; Bottom plate 2.5 mm; Arms 6 mm; Clamp plate 3 mm |
| Includes | Frame kit, 2 × M20×300 mm battery straps, upper and lower anti-slip battery pads, printed parts pack, 1.5 mm L-shaped screwdriver, 2 × 2 mm L-shaped screwdrivers, 1 × 3 mm L-shaped screwdriver, M8 wrench, screw pack |
