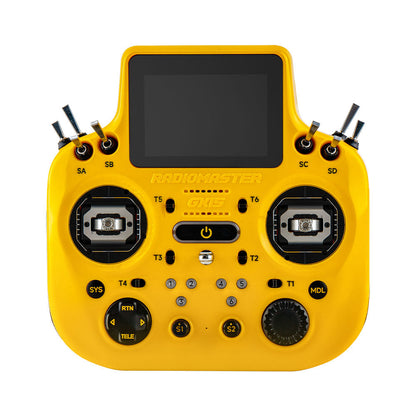

RadioMaster GX15 ELRS 16-Channel Radio Controller
Pairs well with
RadioMaster GX15 ELRS 16-Channel Radio Controller
Product Details

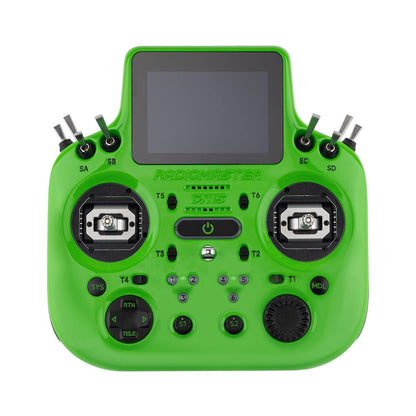

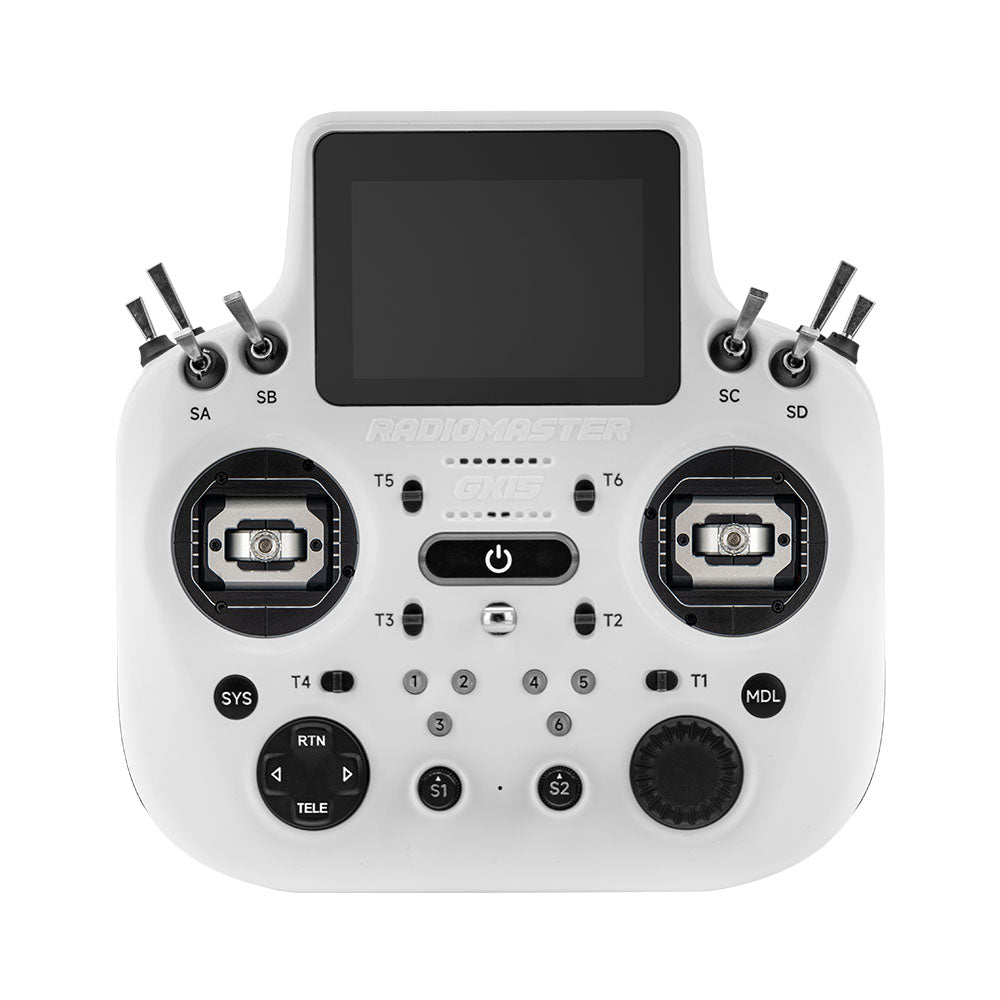

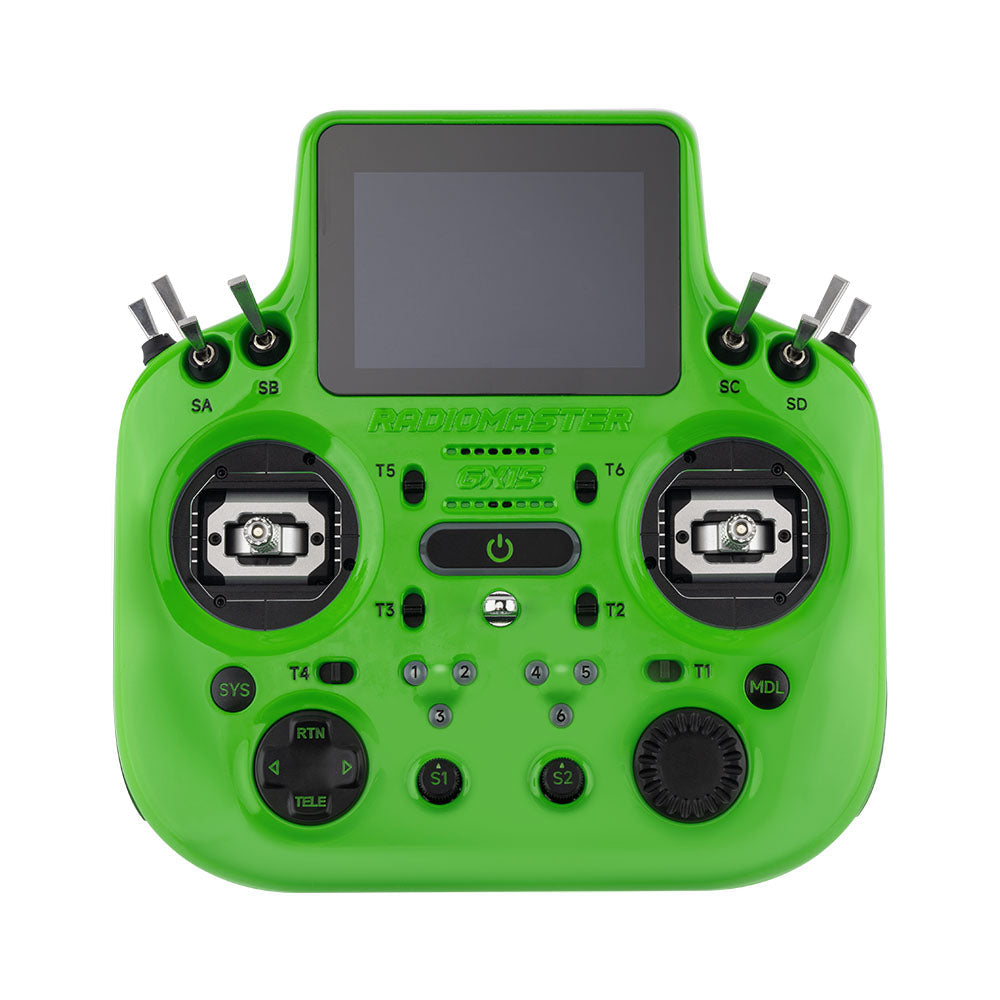

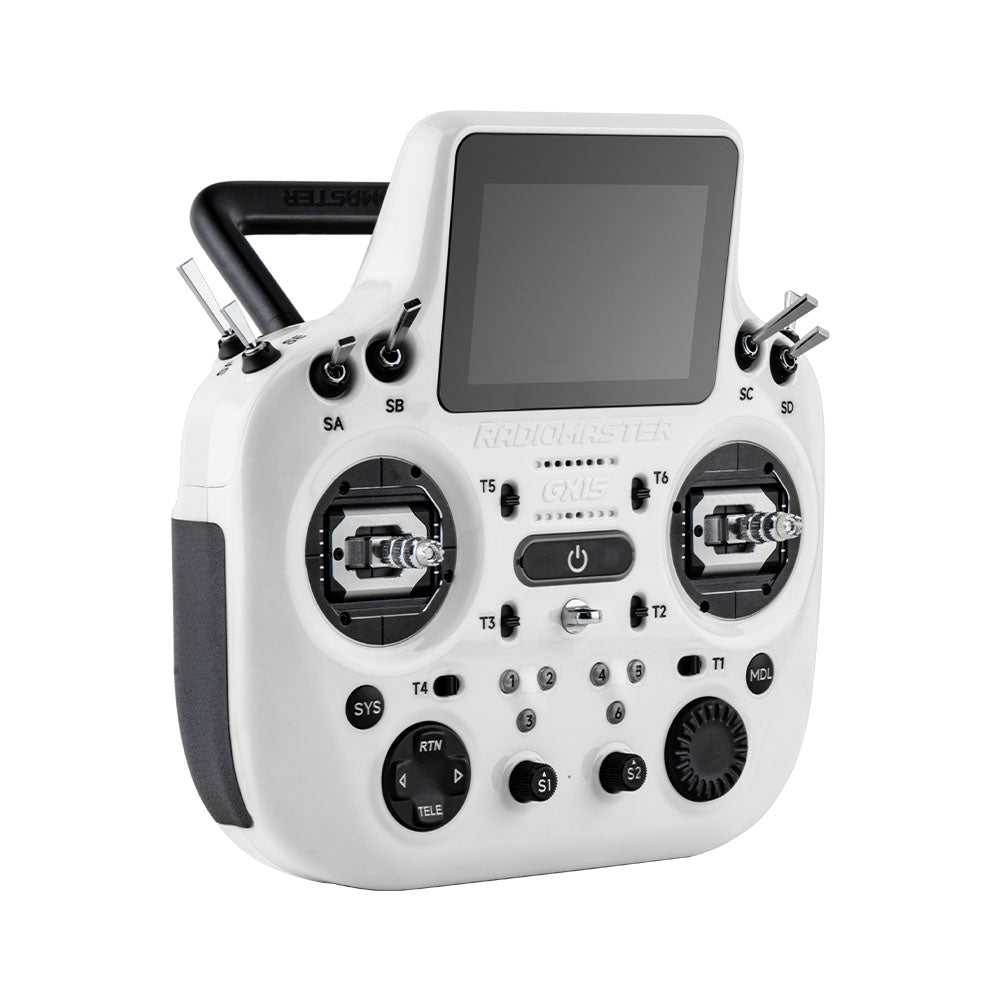

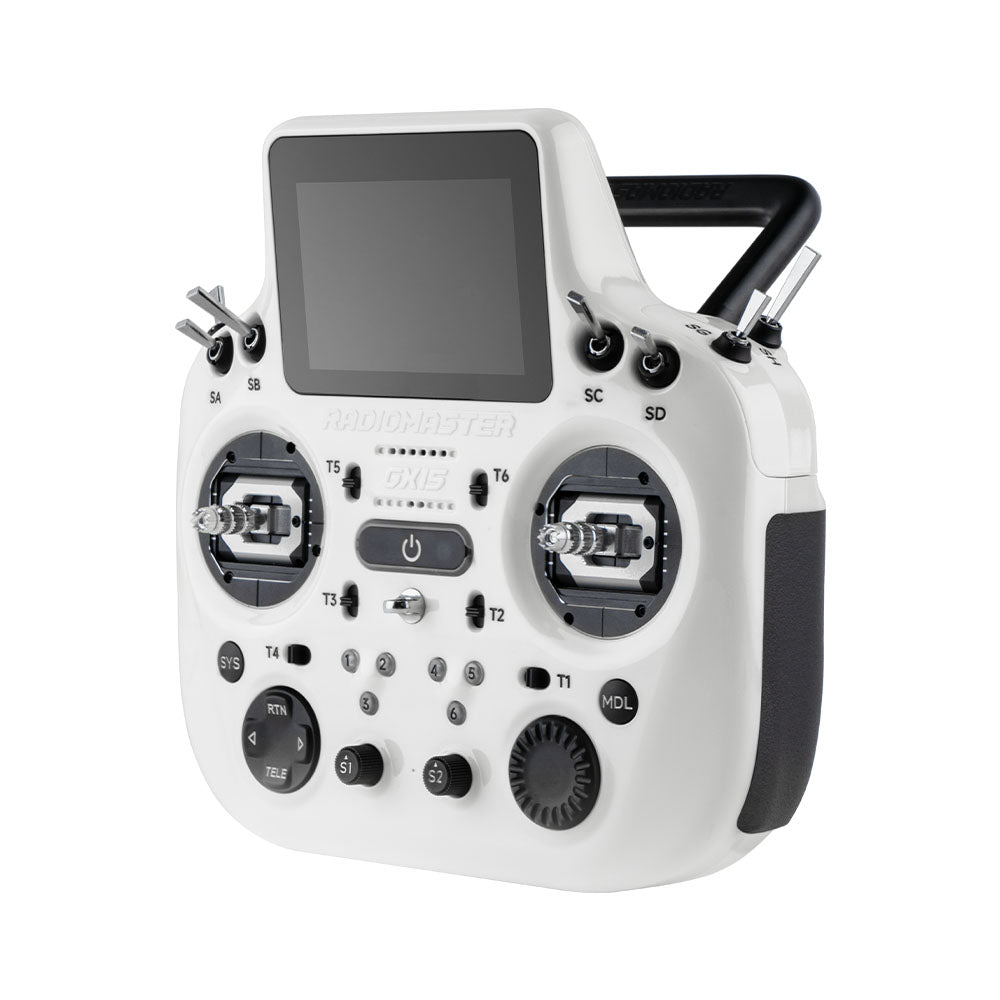

The RadioMaster GX15 is a 16-channel radio controller built for RC airplanes, gliders, and helicopters, running EdgeTX firmware (version 2.12.0 or higher) on an STM32 H7 processor with a 3.5-inch 480 × 320 IPS touchscreen rated up to 600 nits. Its dual 2.4GHz ExpressLRS Gemini system uses two 250mW SX1281 transceivers with integrated horizontal and vertical antennas for polarization diversity, and it also supports mLRS for secure, long-range links.

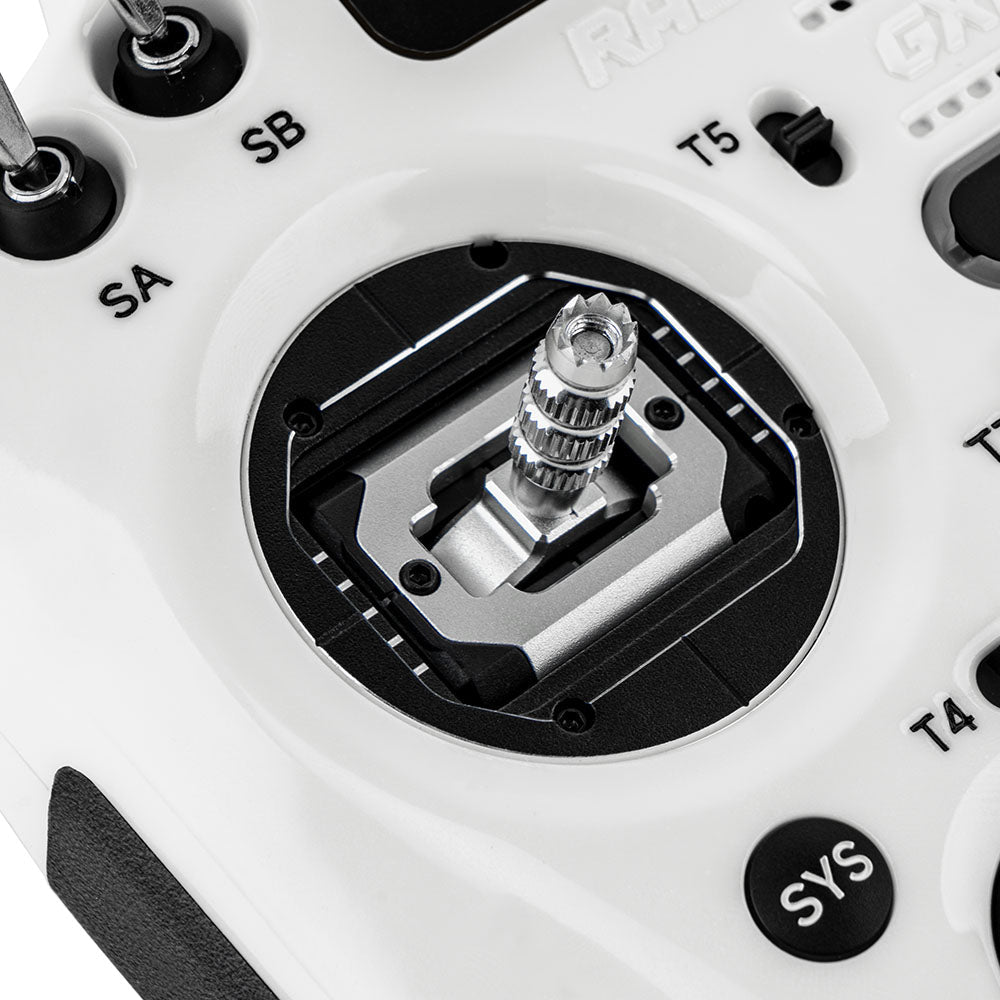

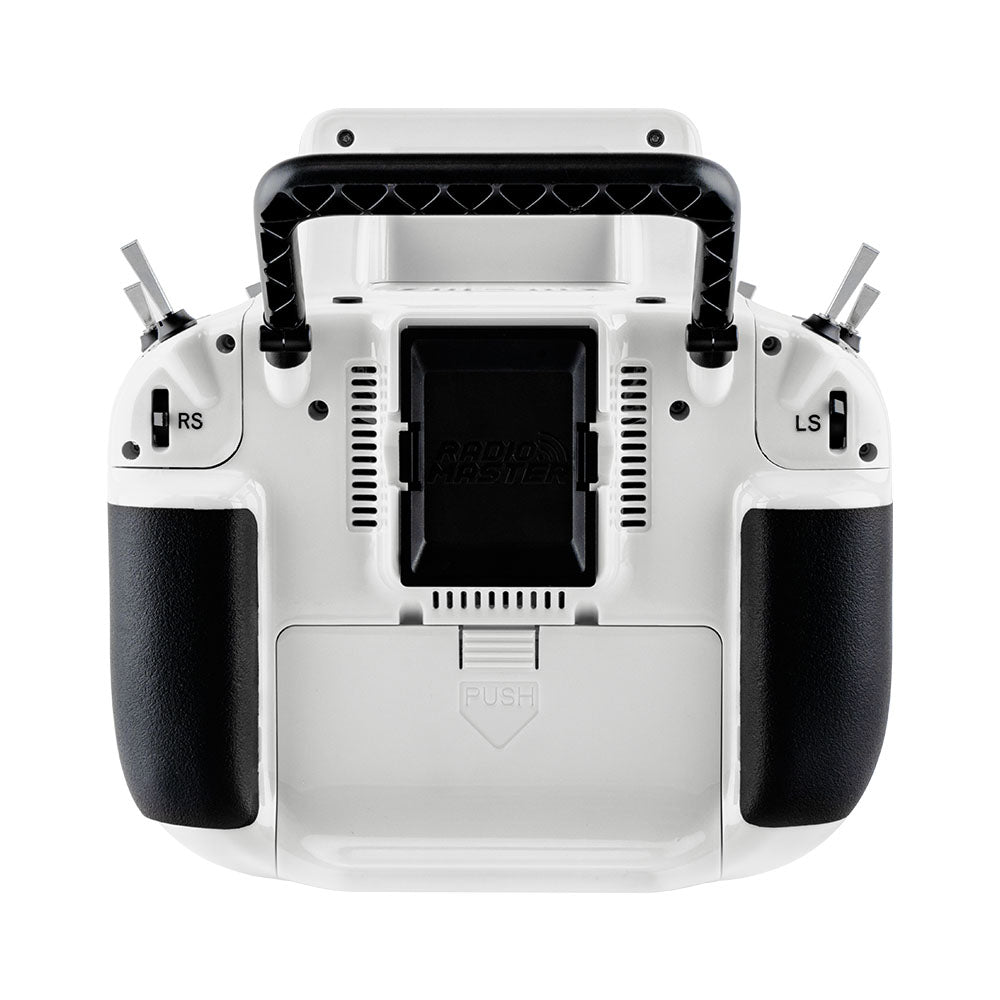

V6 Hall-effect gimbals with M4 sticks provide consistent control, while a JR-compatible module bay, interchangeable shoulder switches, and a built-in gyroscope for tilt-based inputs extend configuration options. Power comes from a 7.4V 2-cell LiPo, two 3.7V 18650 cells, or a 21700 5000mAh pack (batteries not included), managed by intelligent battery circuitry and a low-noise fan with aluminum heat sinks; the unit measures 199 × 197 × 78 mm and weighs 681 g without a battery.
| Brand | RadioMaster |
| Model | GX15 |
| Product Type | Radio Controller |

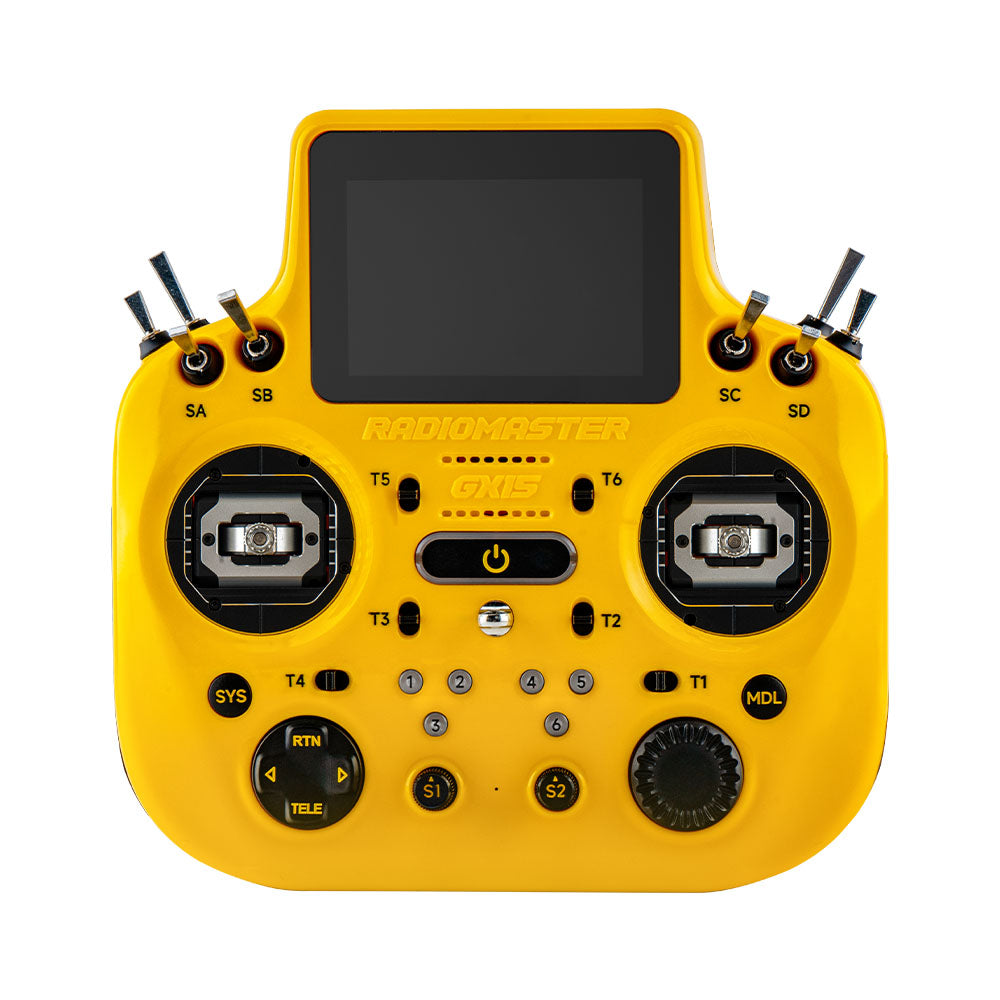

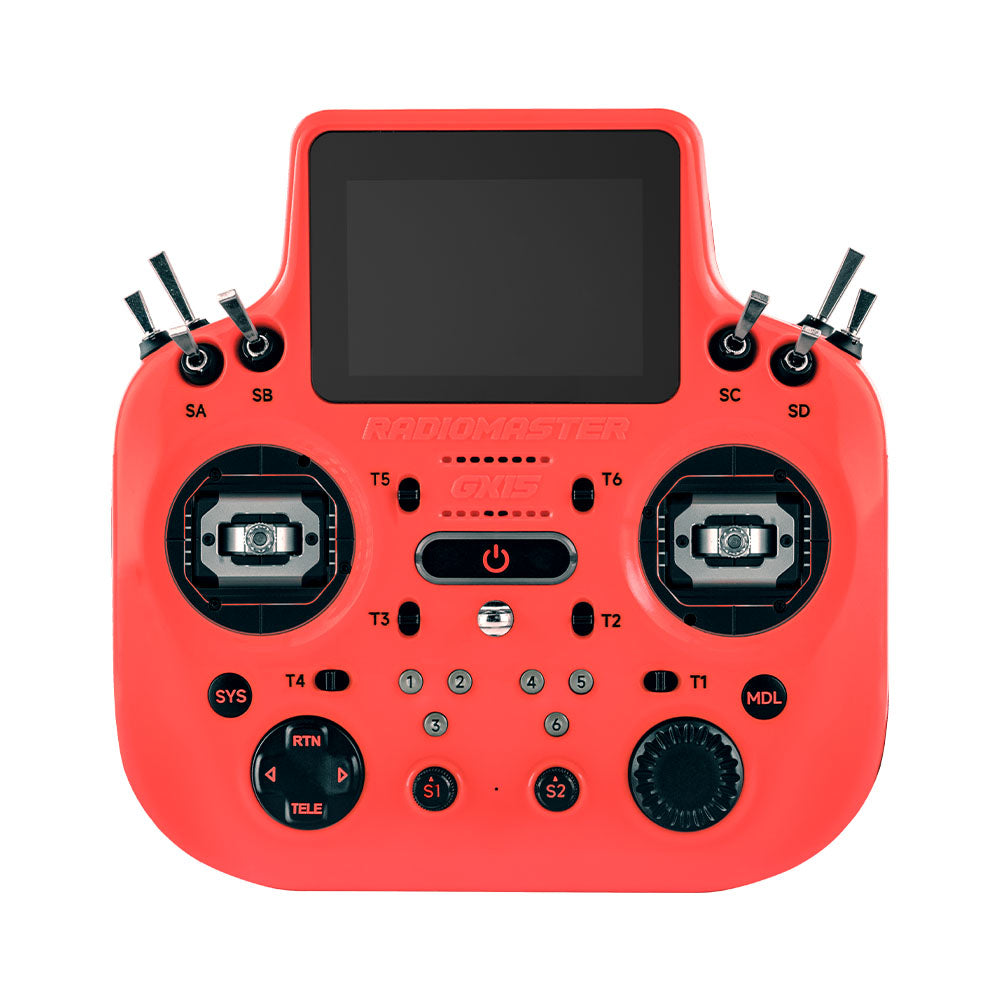

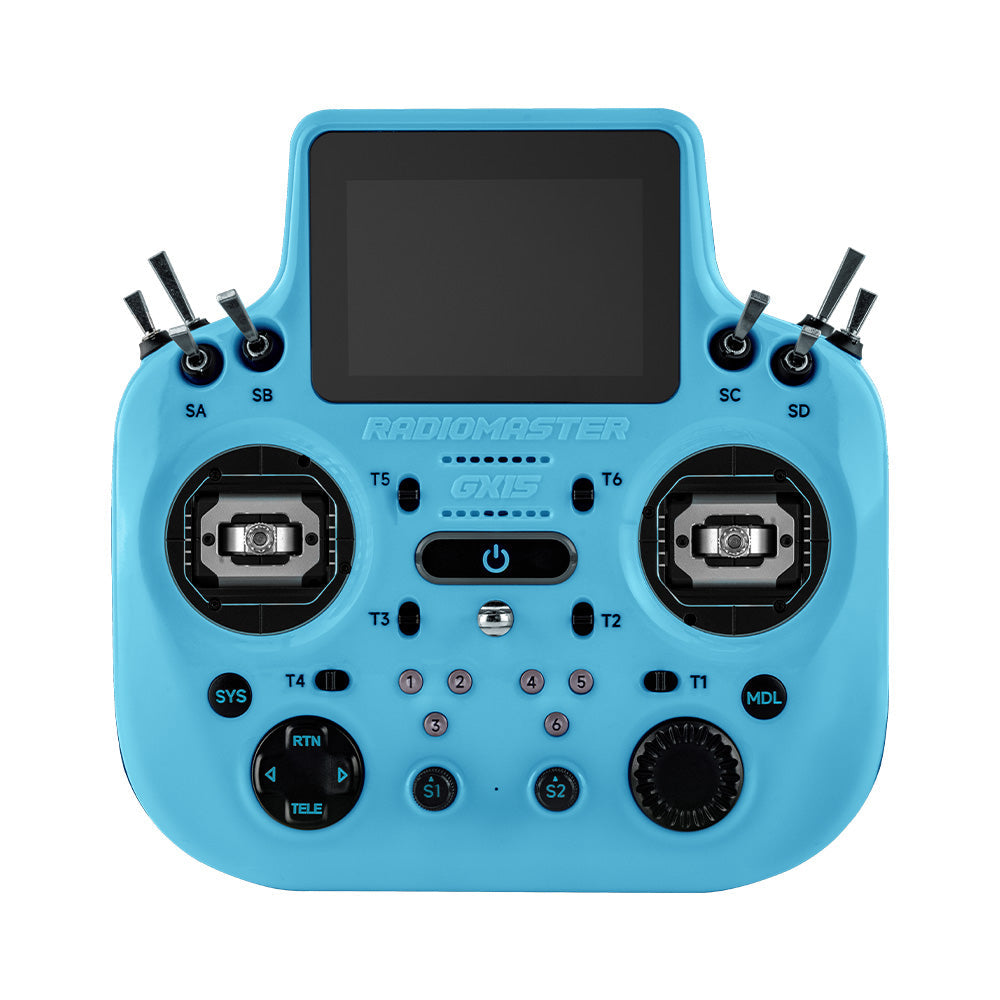

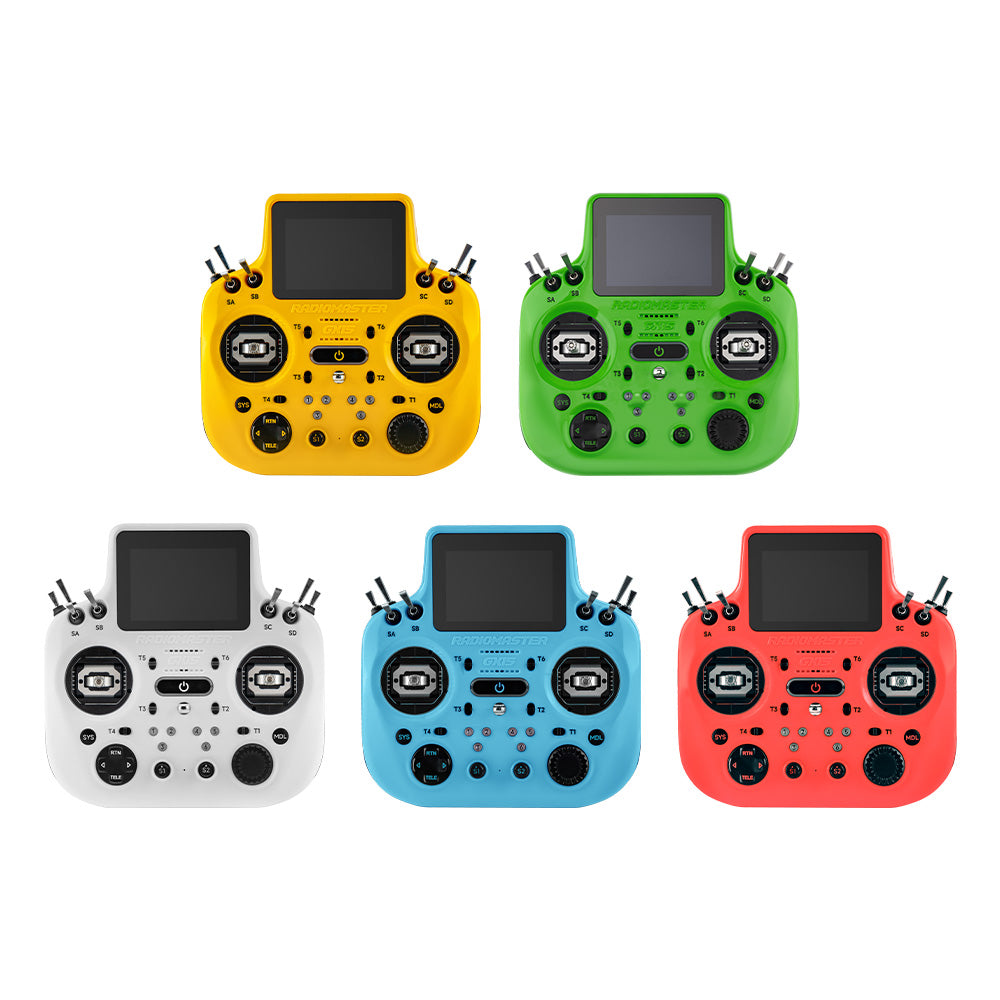

| Color | White / Yellow / Red / Green / Blue |
| Voltage Range | 6.6 - 8.4V DC |
| Current | 850mA (at max output power) |
| Frequency | 2.400GHz |
| Internal RF | ExpressLRS 2.4GHz |
| Channels | Max 16 channels (Receiver dependent) |
| Radio Firmware | EdgeTX (Transmitter) (requires version 2.12.0 or higher) |
| Built-in Flash Storage | 512MB |

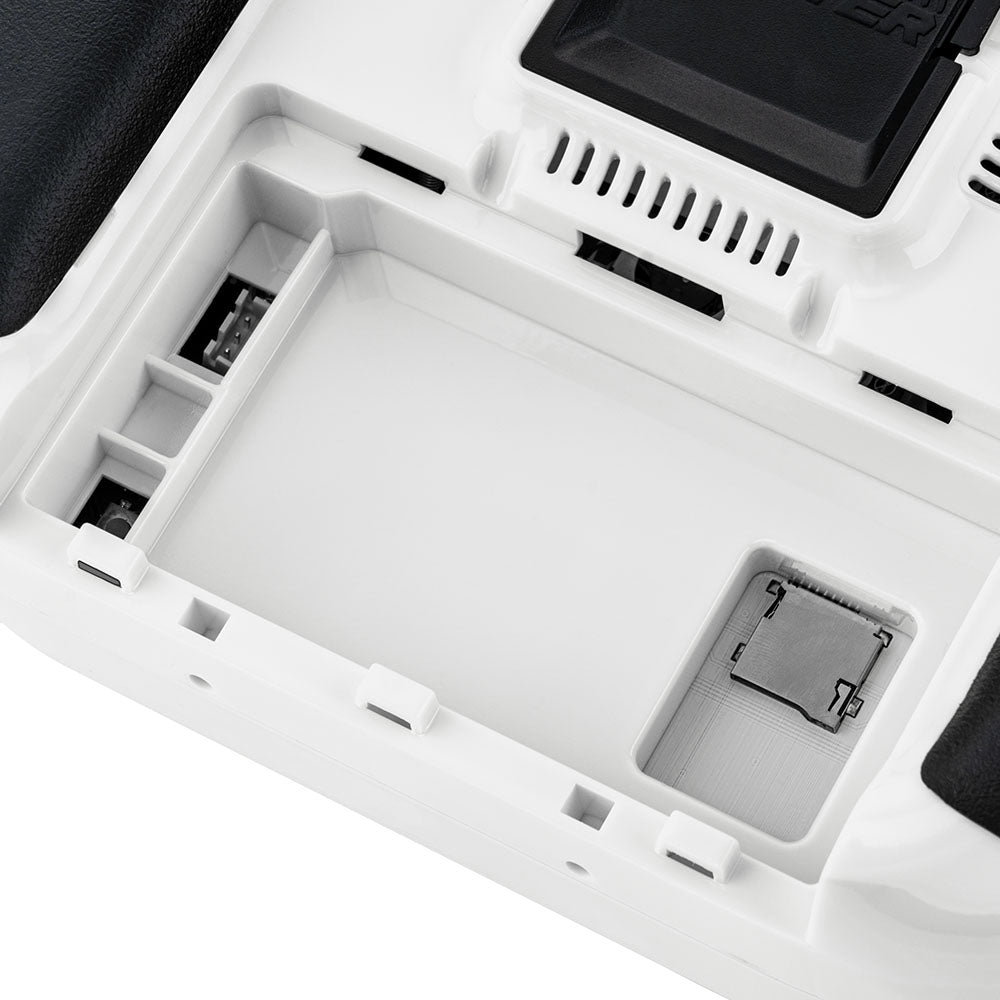

| MicroSD card (Not included) | 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash) |
| Cooling Fan | Yes |
| Built-in Microphone | Yes (Future expansion) |
| Built-in Motion Sensor | Yes |
| Display | 3.5-inch IPS touchscreen (480 x 320 resolution) |
| Battery | 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included) |
| Connectivity | USB-C |
| Gimbals | V6 Hall sensor gimbals |
| Gimbal Sticks | M4 |
| Upgrade Method | USB-C (UF2) |
| Module Bay | JR-compatible module bay for additional modules |
| Dimensions | 199 x 197 x 78 mm |
| Weight | 681 g (without battery) |
