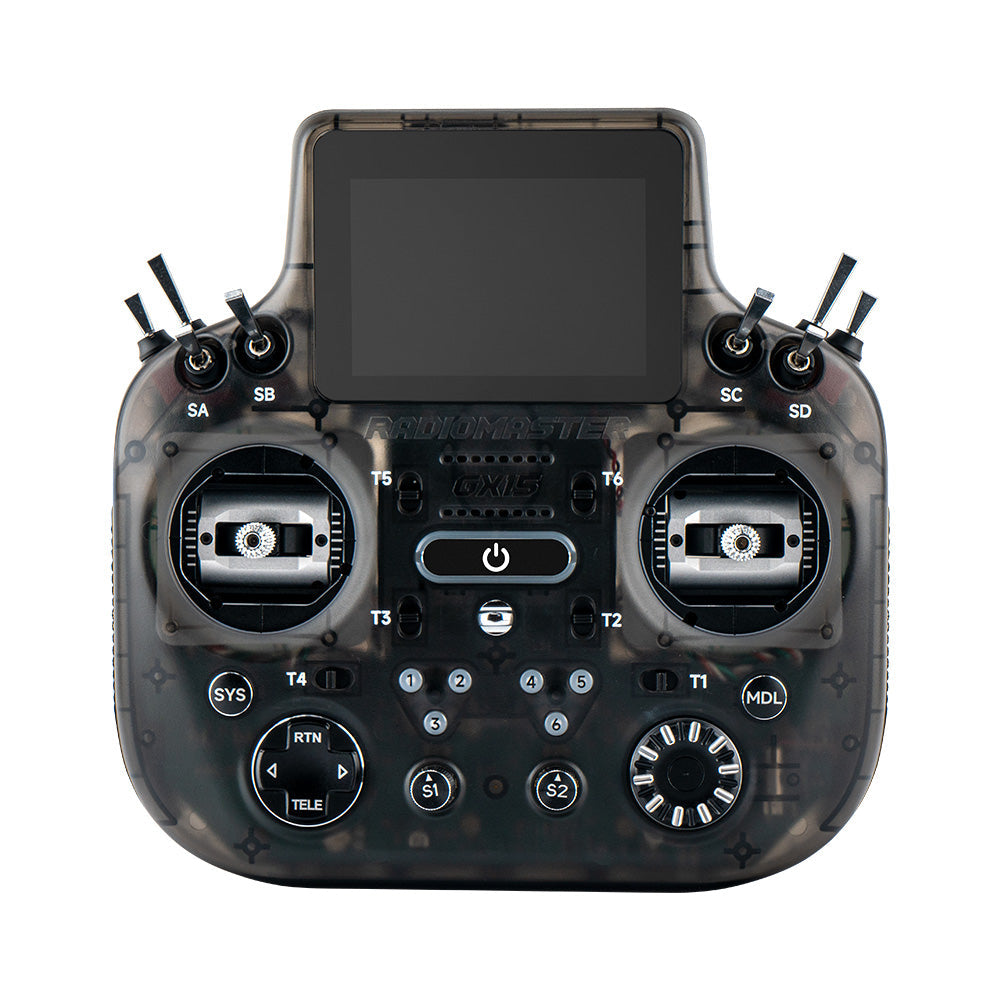

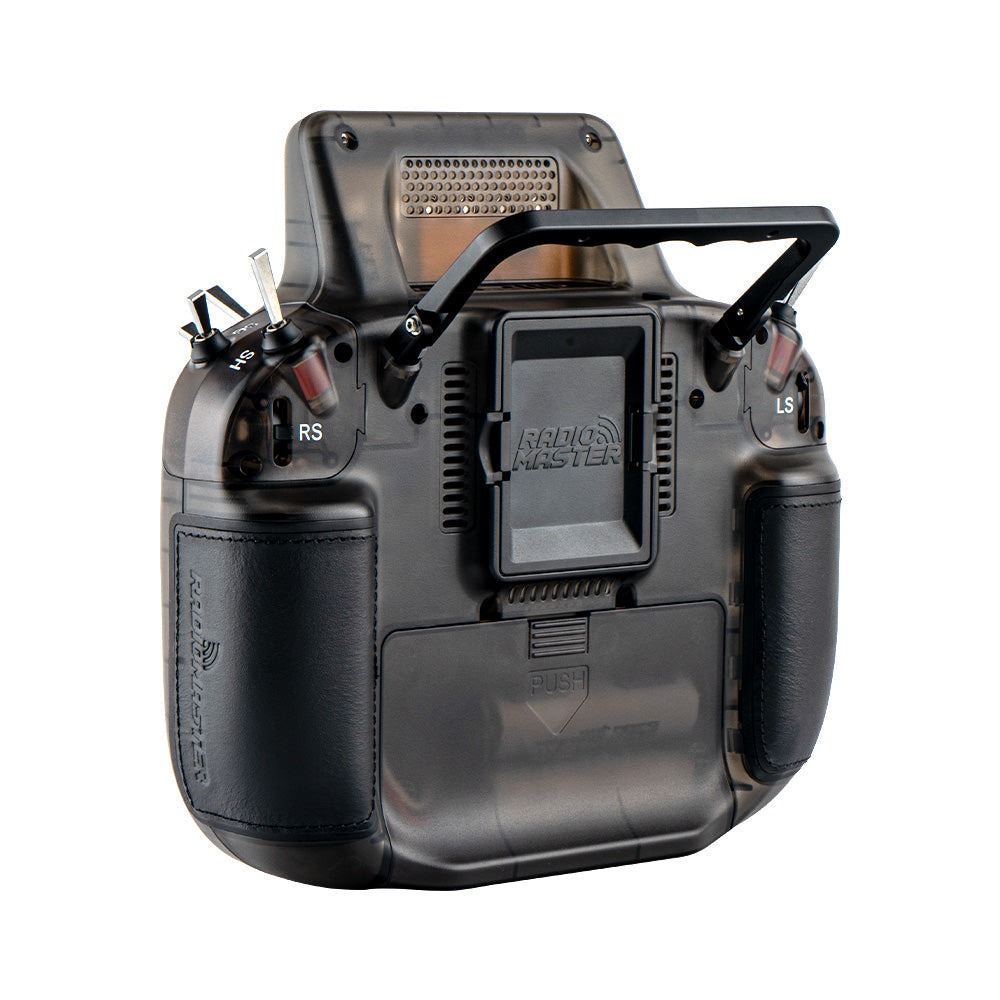

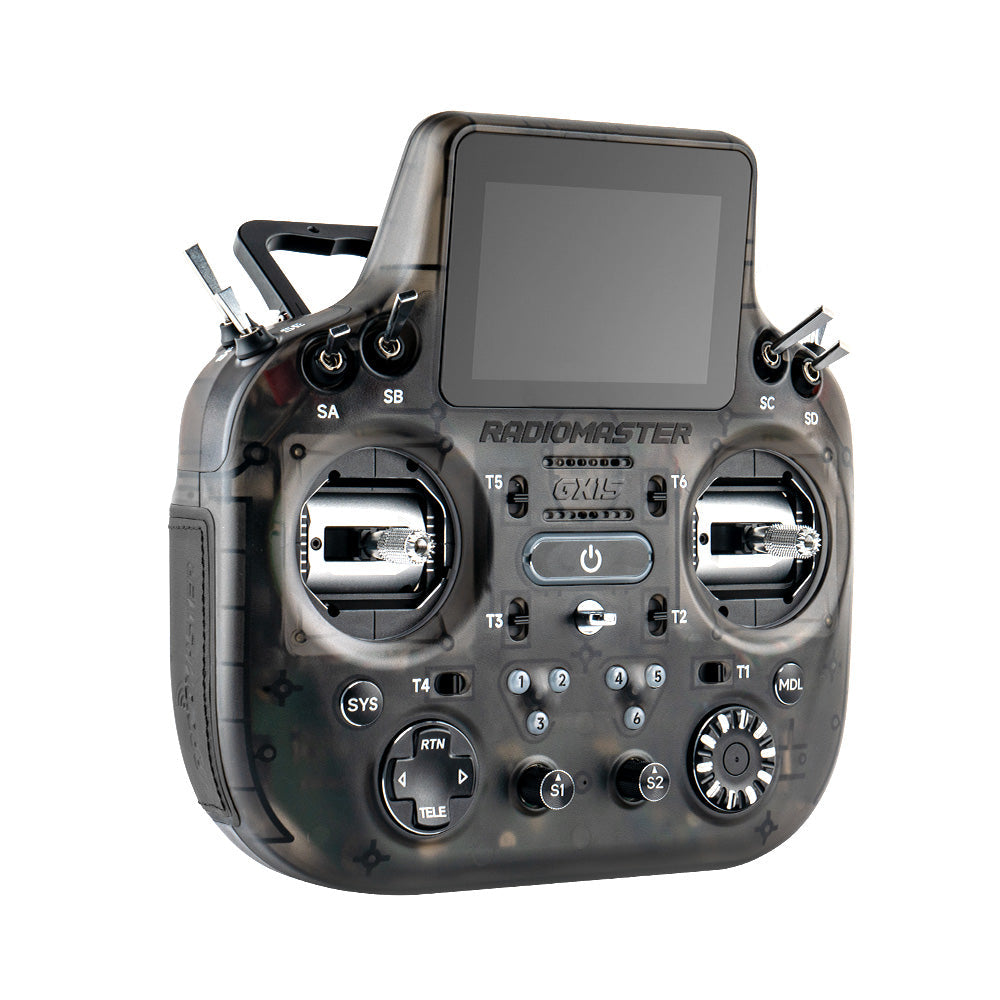

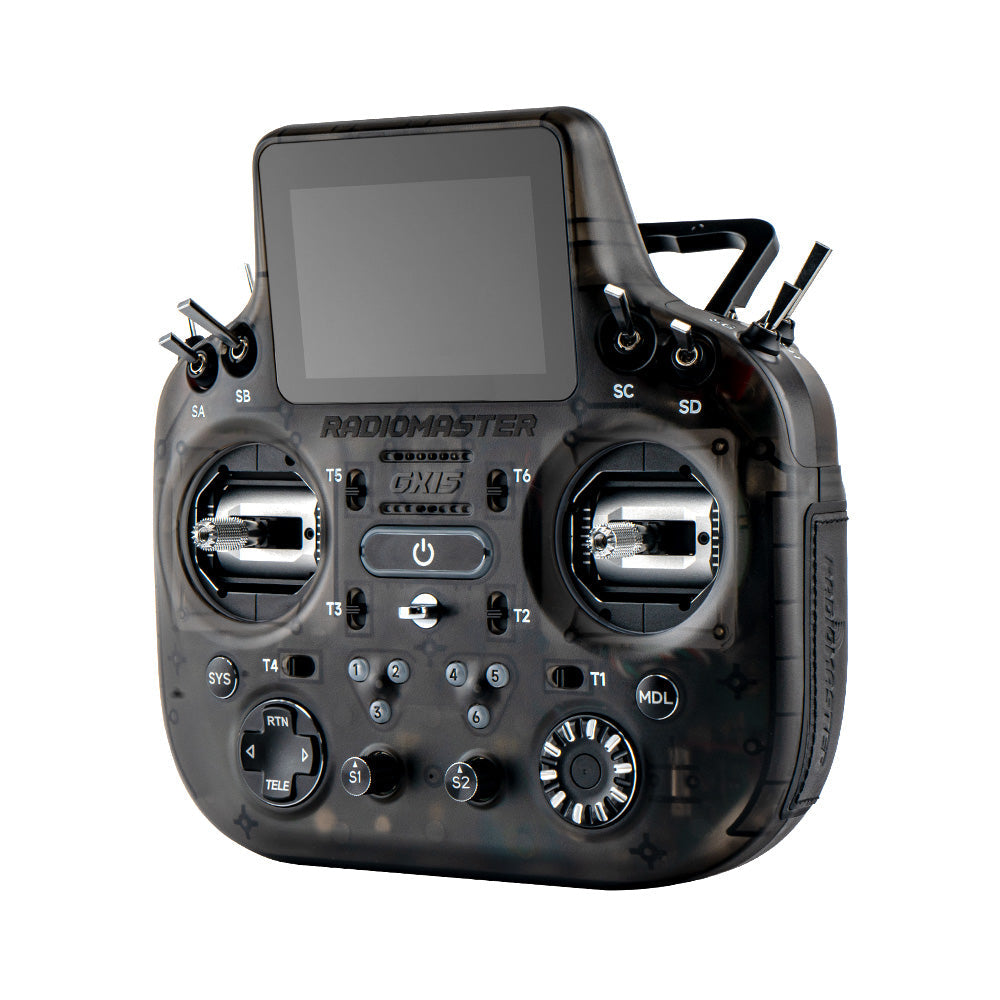

RadioMaster GX15 MAX ELRS 16-Channel Radio Controller
Pairs well with
RadioMaster GX15 MAX ELRS 16-Channel Radio Controller
Product Details

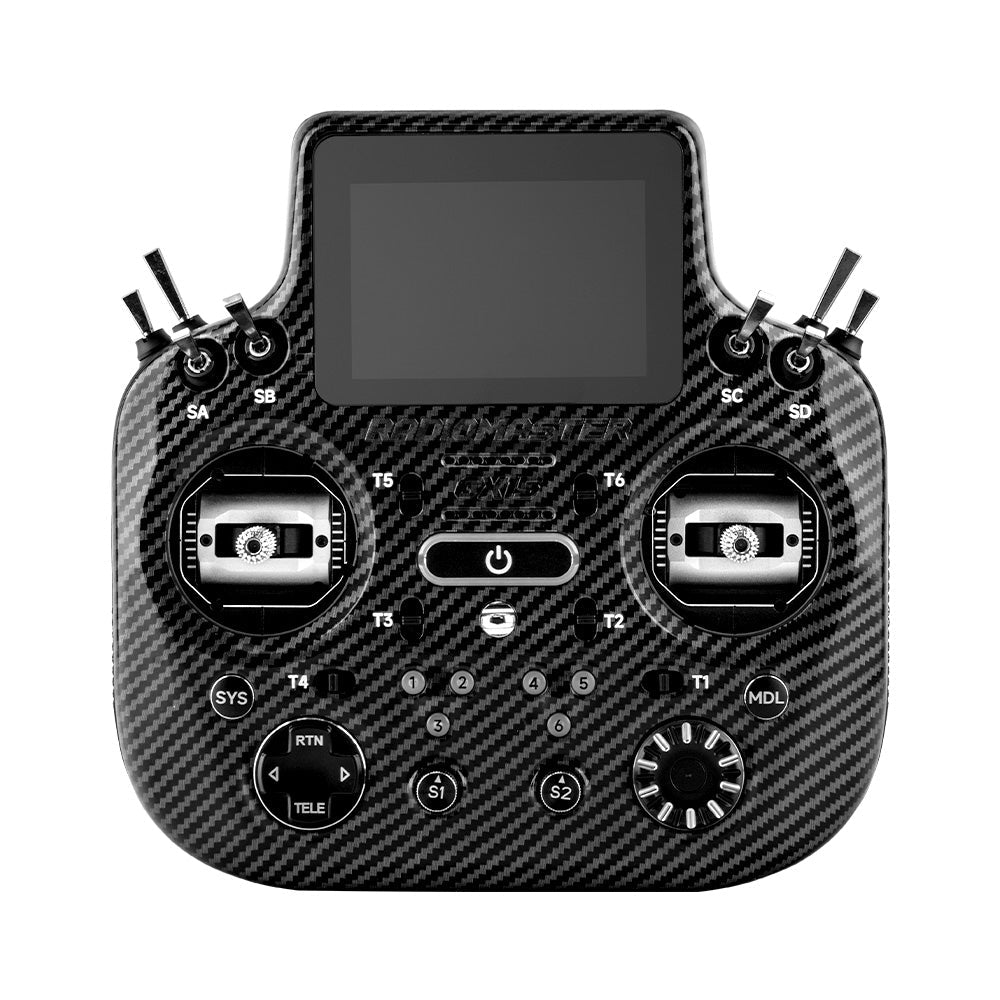

The RadioMaster GX15 MAX is a 16-channel radio controller built for pilots of RC airplanes, gliders, and helicopters, running EdgeTX firmware and ExpressLRS 2.4GHz as standard. Its AG02 CNC aluminum Hall-effect gimbals, aluminum buttons, and precision scroll wheel give direct, consistent control inputs, while the 3.5-inch IPS touchscreen (480 x 320) stays readable outdoors at up to 600 nits.
Dual 250mW SX1281 transceivers drive Gemini ExpressLRS performance, and the internal horizontal and vertical 2.4GHz antennas provide polarization diversity without external antennas. An STM32 H7 processor, 512MB of built-in flash, a low-noise fan with aluminum heat sinks, a built-in gyroscope, and interchangeable shoulder switches round out the platform, which is powered by two 18650 cells, a 2-cell LiPo, or a 21700 pack.
| Brand | RadioMaster |
| Model | GX15 MAX |
| Product Type | Radio Controller |

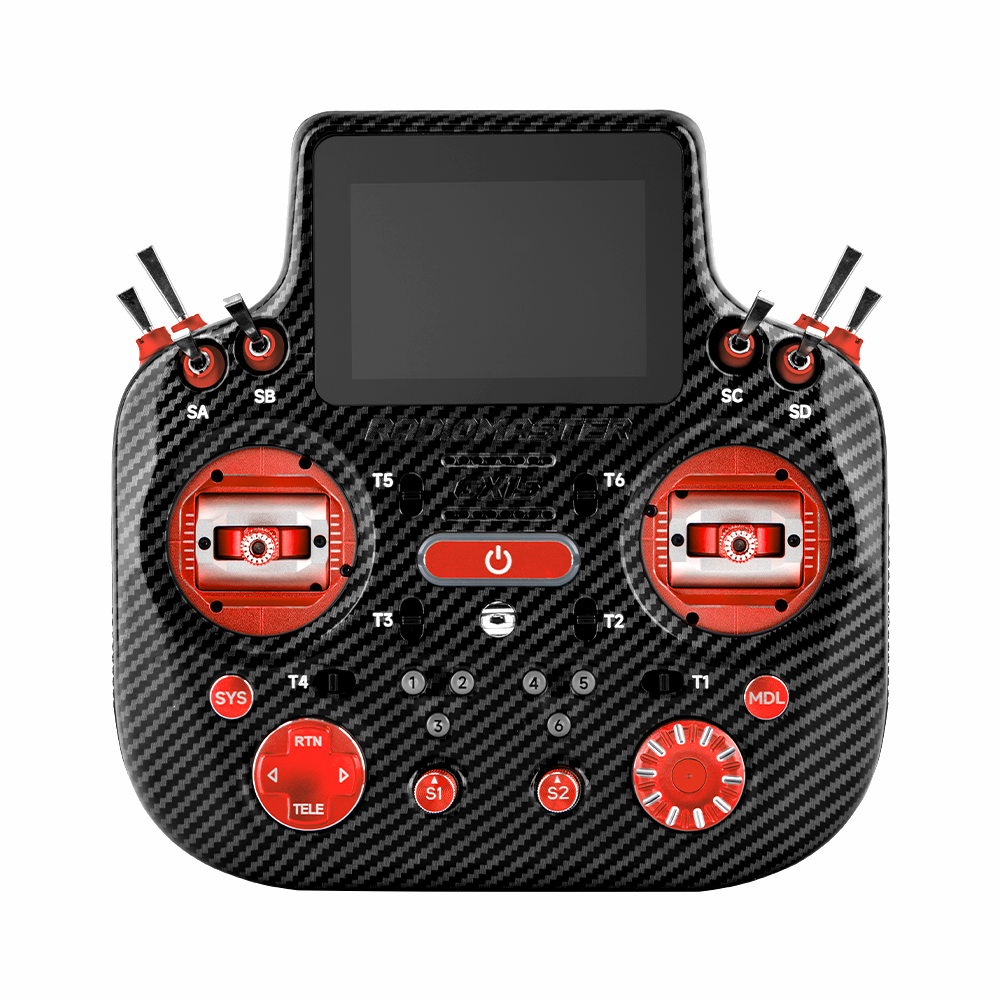

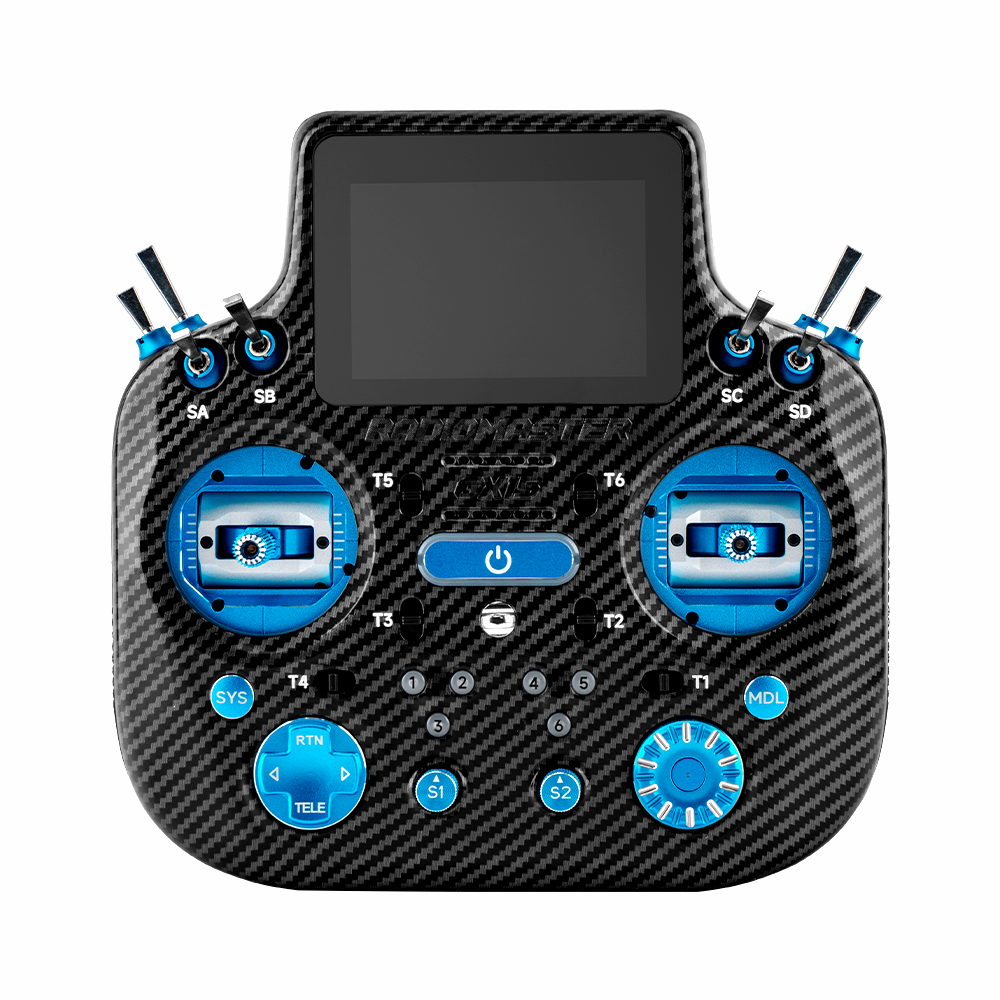

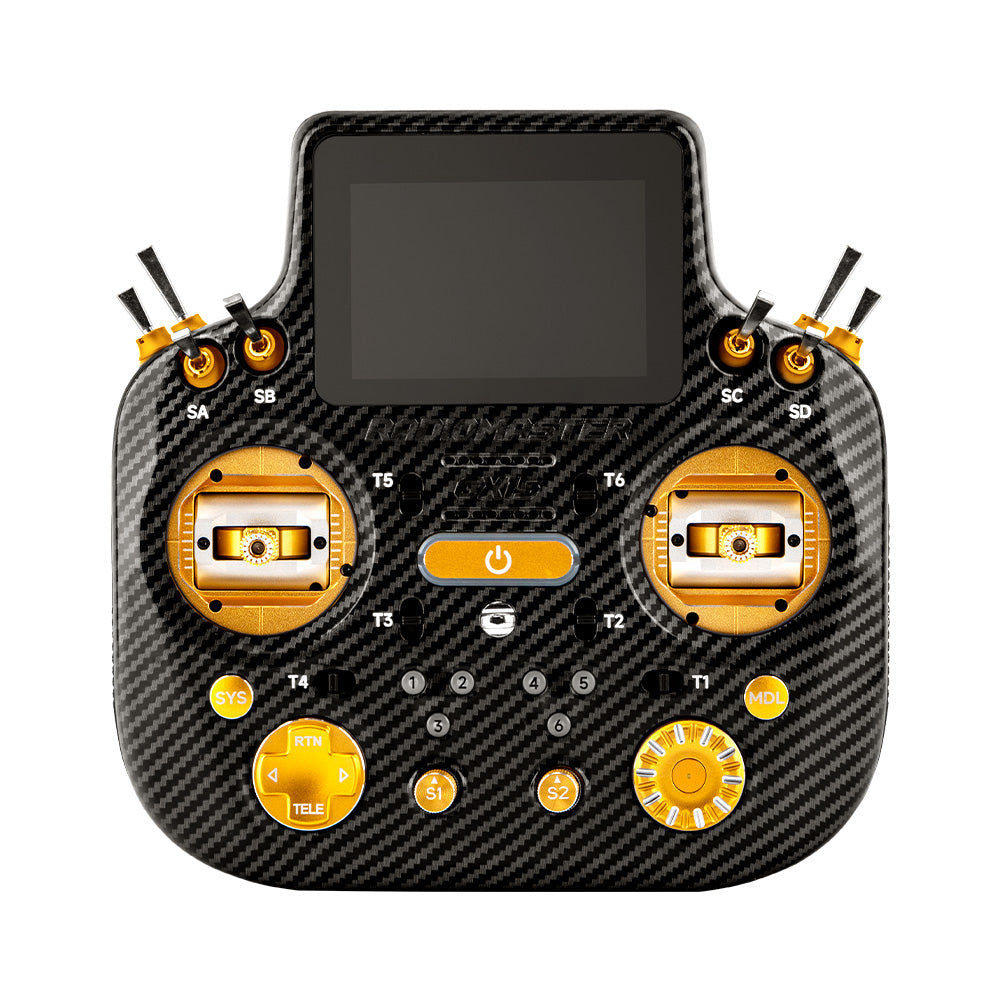

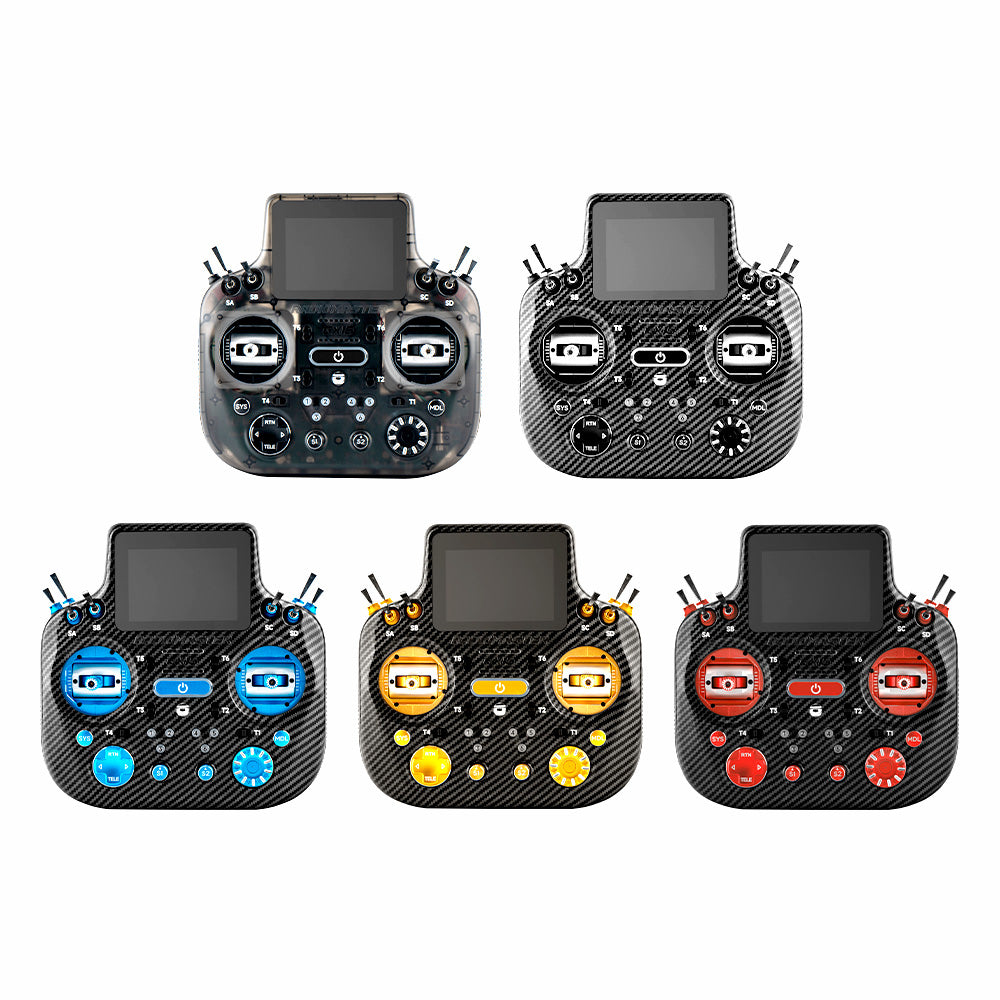

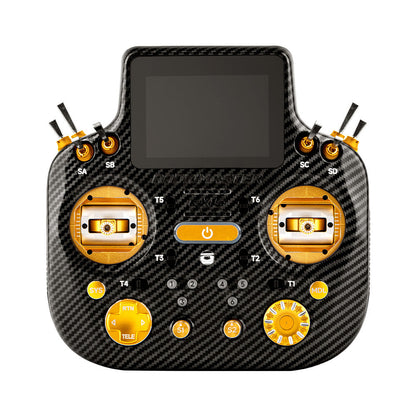

| Color | Black / Transparent Charcoal / Red / Gold / Blue |
| Voltage Range | 6.6 - 8.4V DC |
| Current | 850mA (at max output power) |
| Frequency | 2.400GHz |
| Internal RF | ExpressLRS 2.4GHz |
| Channels | Max 16 channels (Receiver dependent) |
| Radio Firmware | EdgeTX (Transmitter) (requires version 2.12.0 or higher) |
| Built-in Flash Storage | 512MB |
| Cooling Fan | Yes |
| Built-in Microphone | Yes (Future expansion) |
| Built-in Motion Sensor | Yes |
| MicroSD card (Not included) | 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash) |
| Display | 3.5-inch IPS touchscreen (480 x 320 resolution) |
| Battery | 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included) |
| Connectivity | USB-C |
| Gimbals | AG02 CNC Hall sensor gimbals |
| Gimbal Sticks | M4 |
| Upgrade Method | USB-C (UF2) |
| Module Bay | JR-compatible module bay for additional modules |
| Dimensions | 199 x 197 x 78 mm |
| Weight | 725 g (without battery) |
