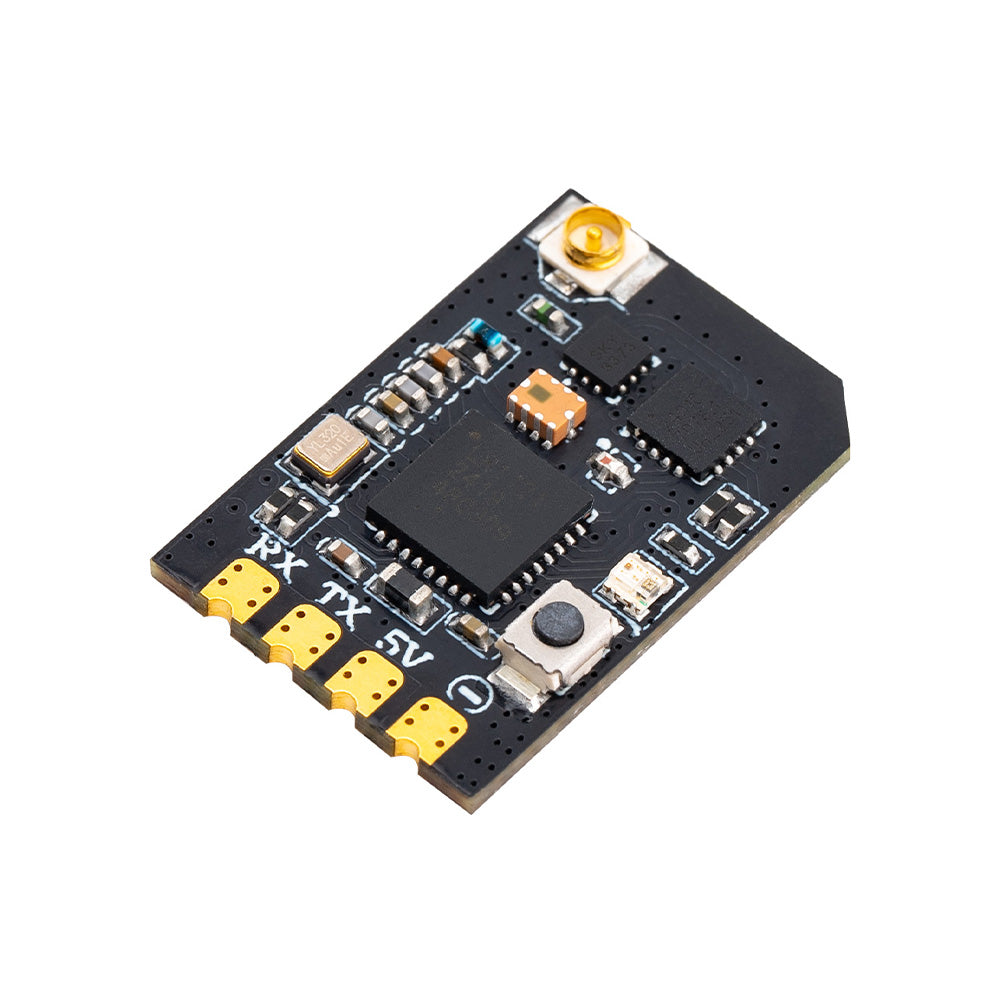

RadioMaster XR1 Nano ExpressLRS Receiver
Pairs well with
RadioMaster XR1 Nano ExpressLRS Receiver
Product Details

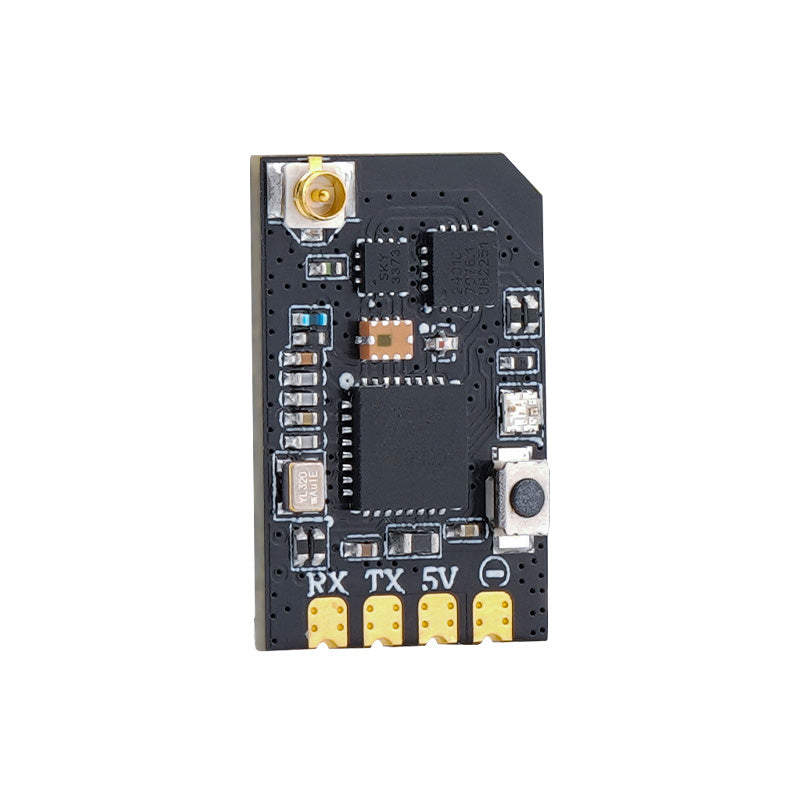

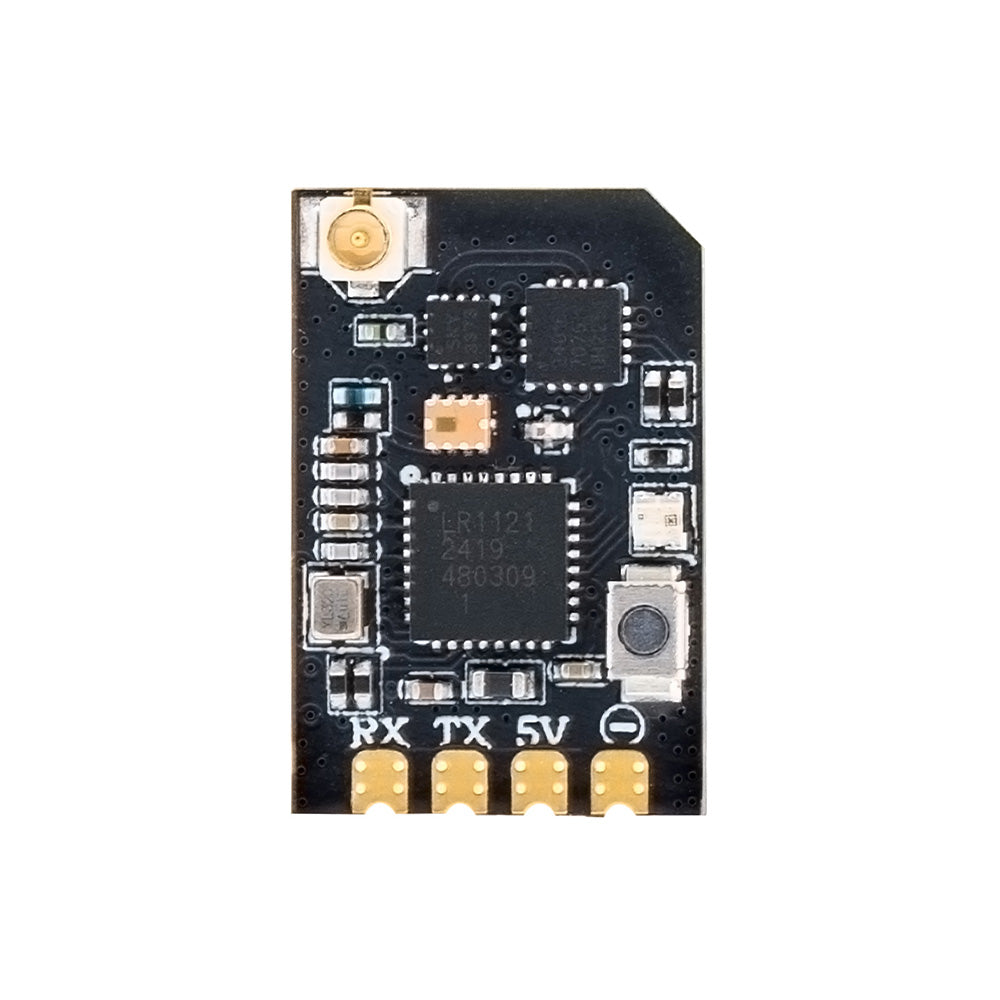

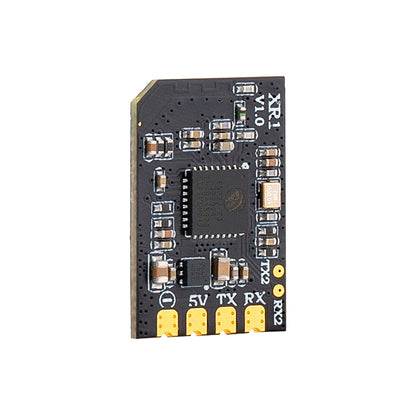

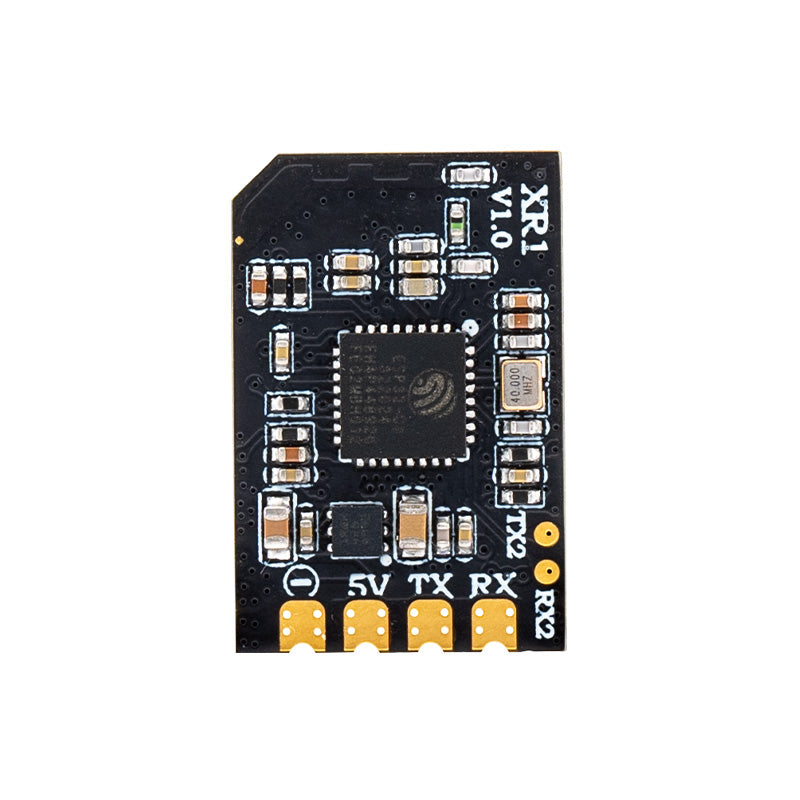

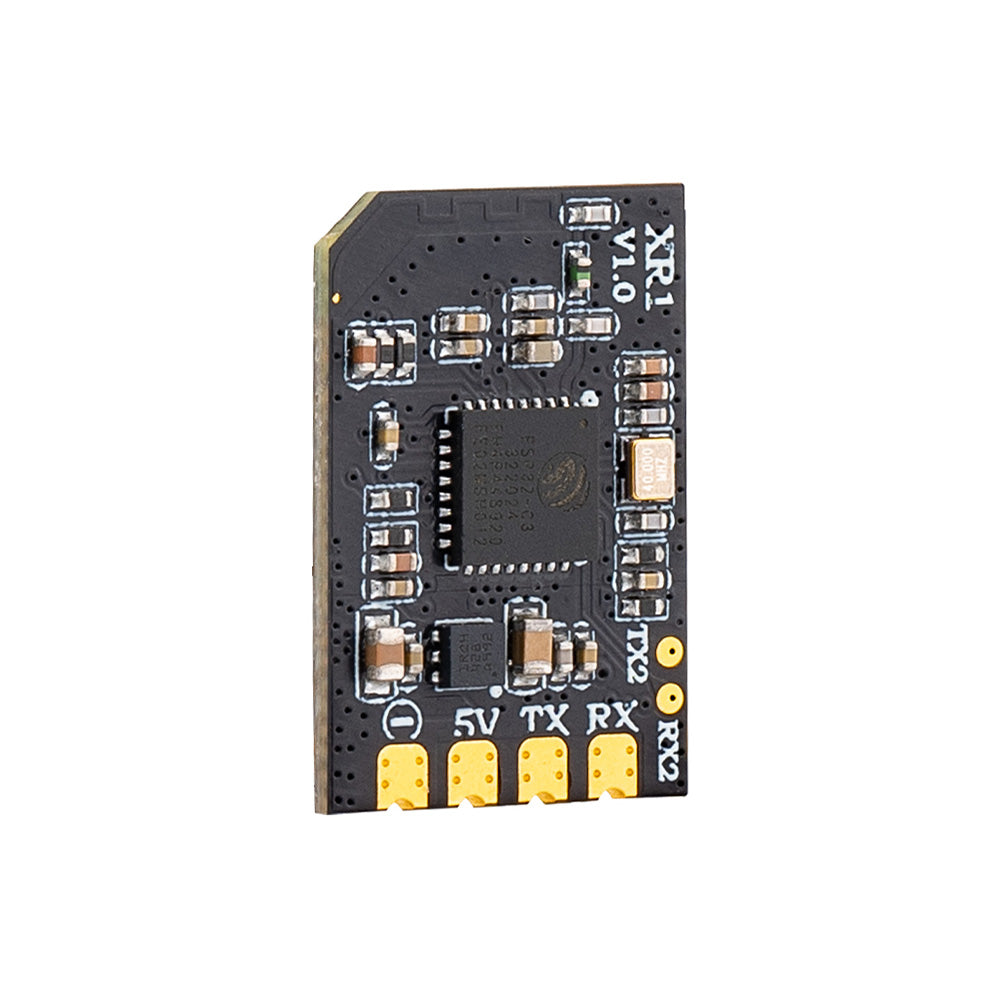

The RadioMaster XR1 Nano is an ultra-compact ExpressLRS receiver built around the third-generation Semtech LR1121 transceiver and an ESP32C3 MCU, operating on either the 2.4 GHz or Sub-G 900 MHz band. Its 20 × 13 × 3 mm, 1.0 g form factor suits small builds where space and weight are limited, while the IPEX-1 connector accepts the supplied T antenna.
Built-in Wi-Fi allows configuration and firmware updates through the WebUI on a PC or mobile device, and the CRSF and secondary UART interfaces connect to a range of flight controllers. The receiver ships with ExpressLRS v3.5.1 pre-installed and is available with 2.4 GHz, Sub-G 900 MHz, or dual-band antenna options.
| Brand | RadioMaster |
| Model | XR1 Nano |
| Product Type | ExpressLRS Receiver |
| Type | ISM2.4 or CE868 |
| MCU | ESP32C3 |
| RF Chip | Semtech LR1121 |
| RF Connector | IPEX-1 |

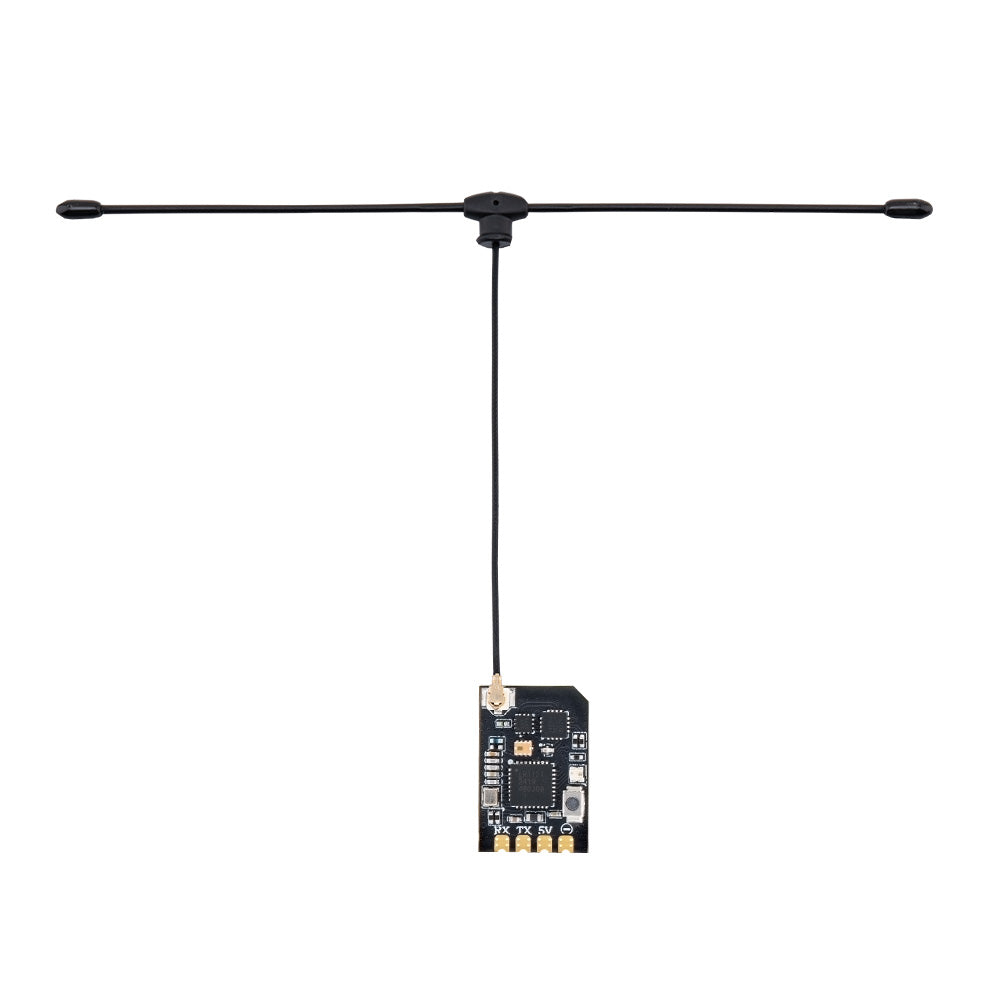

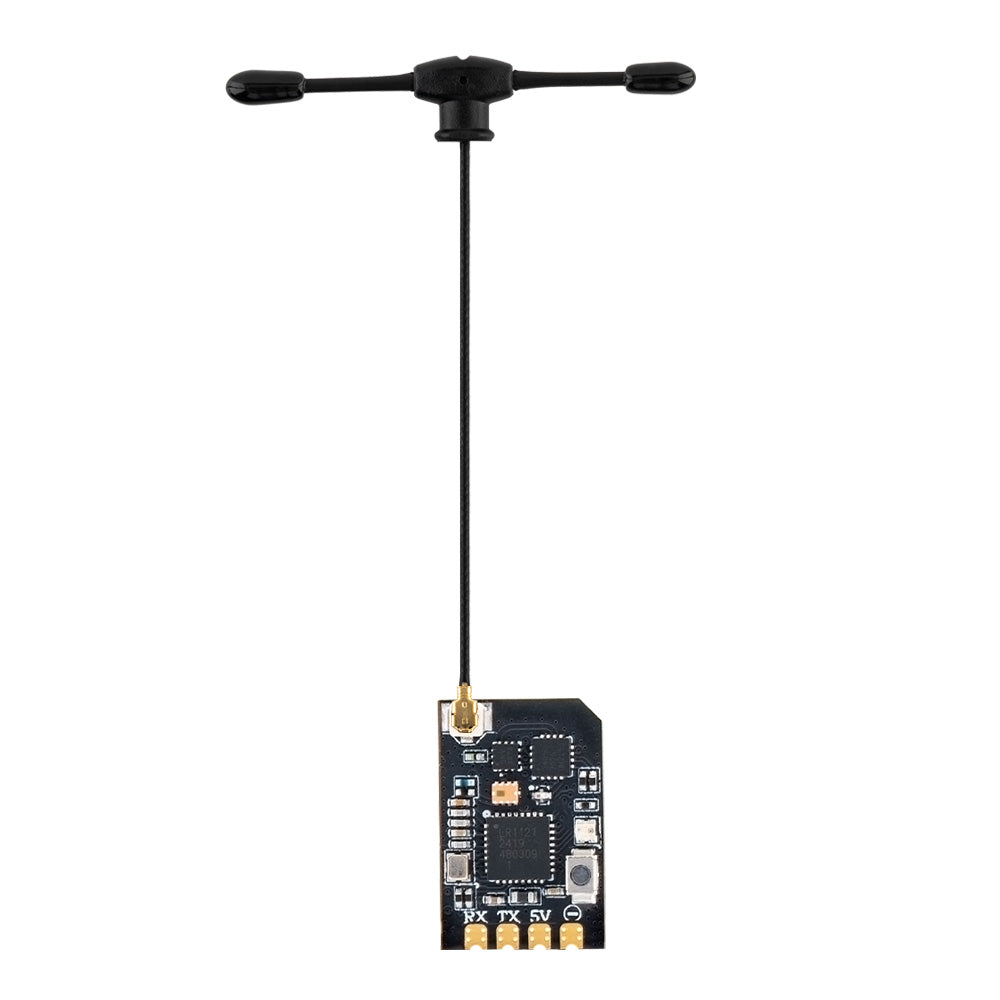

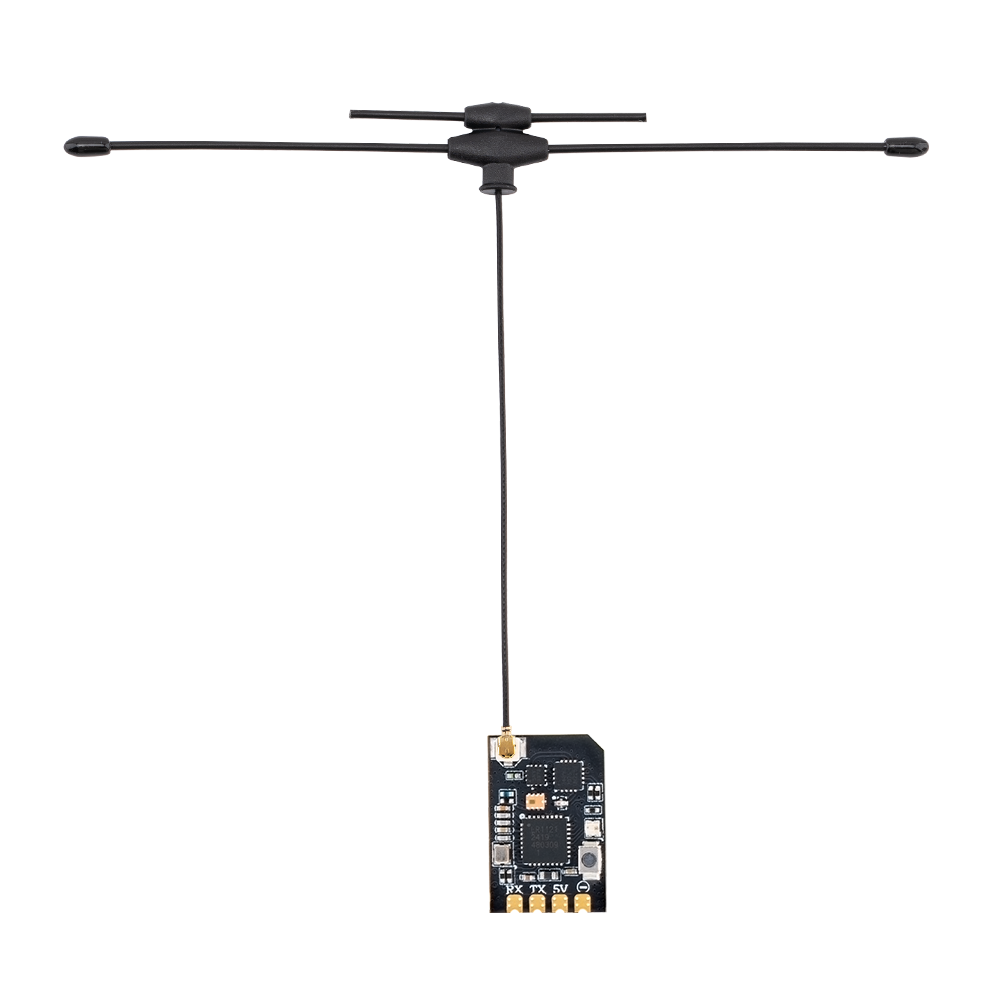

| Antenna | 1x T-Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package) |
| Frequency Range | 2.4GHz or Sub-G 900MHz |
| Telemetry Power | 100mW |
| Maximum Packet Rate | DK500Hz / K1000Hz |
| Minimum Packet Refresh Rate | 50Hz |
| Working Voltage | 5V |
| Weight | 1.0g (without antenna) |
| Dimensions | 20mm x 13mm x 3mm |
| Firmware Version | ExpressLRS v3.5.1 pre-installed |
| FW Target | RadioMaster XR1 2.4/900 RX |
| Bus Interface 1 | CRSF |
| Bus Interface 2 | UART |
